Brake Pipe Installation Note

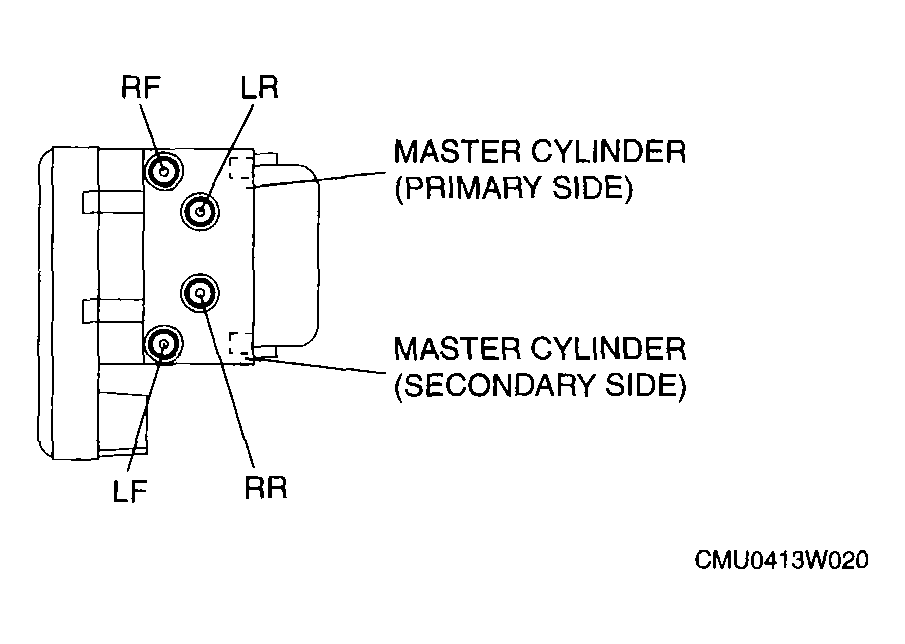

  1. When installing the brake pipe, align the marks made before removal with the ABS/TCS HU/CM as shown in the figure.
Fig 1: Installing Brake Pipe
G04328664Courtesy of MAZDA MOTORS CORP.
