Brake Pipe Removal Note

  1. Mark the brake pipe connecting positions before removal for reference during installation.

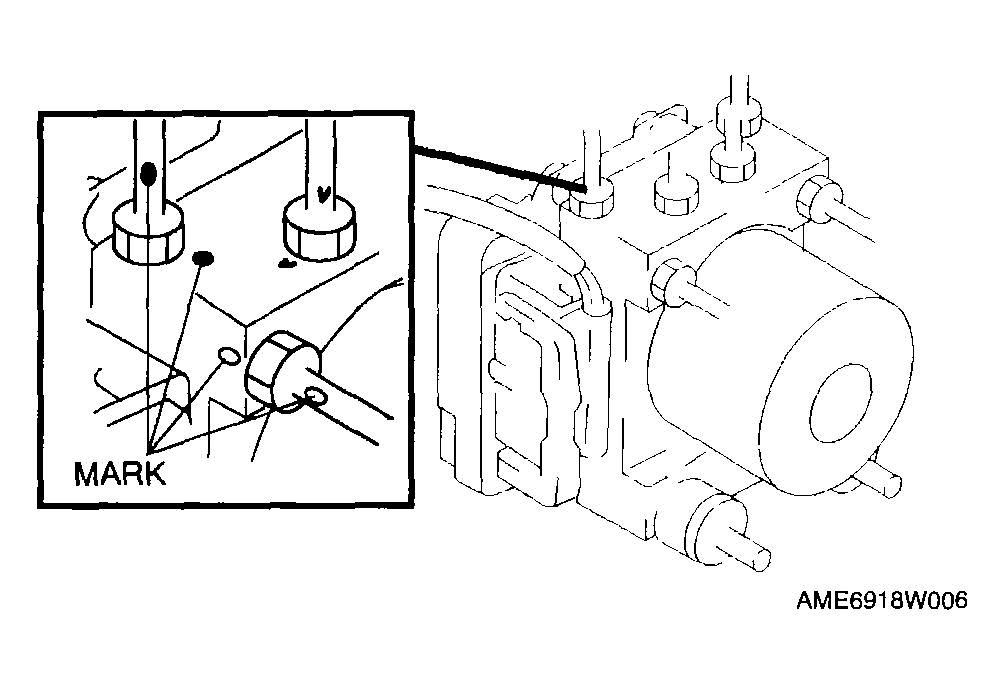

Fig 1: Removing Brake Pipe
G04328663Courtesy of MAZDA MOTORS CORP.
