Connector Installation Note

  1. Verify that the lock lever of the harness connector is completely pulled up.

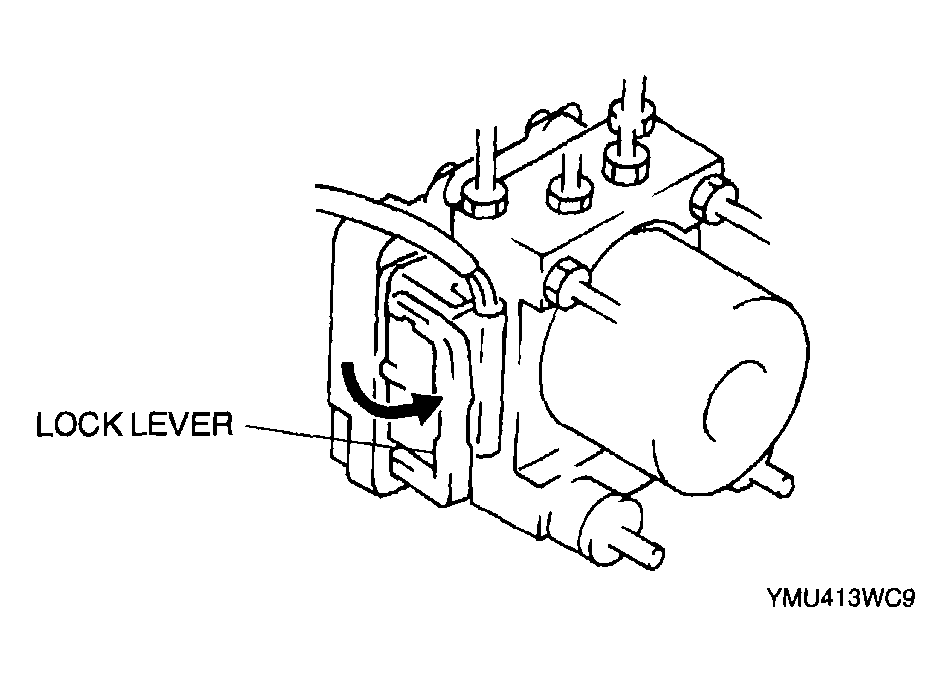

Fig 1: Installing Lock Lever
G04328665Courtesy of MAZDA MOTORS CORP.
