Connector Removal Note

  1. Pull the lock lever up and make it unlock.
  2. Remove the connector.

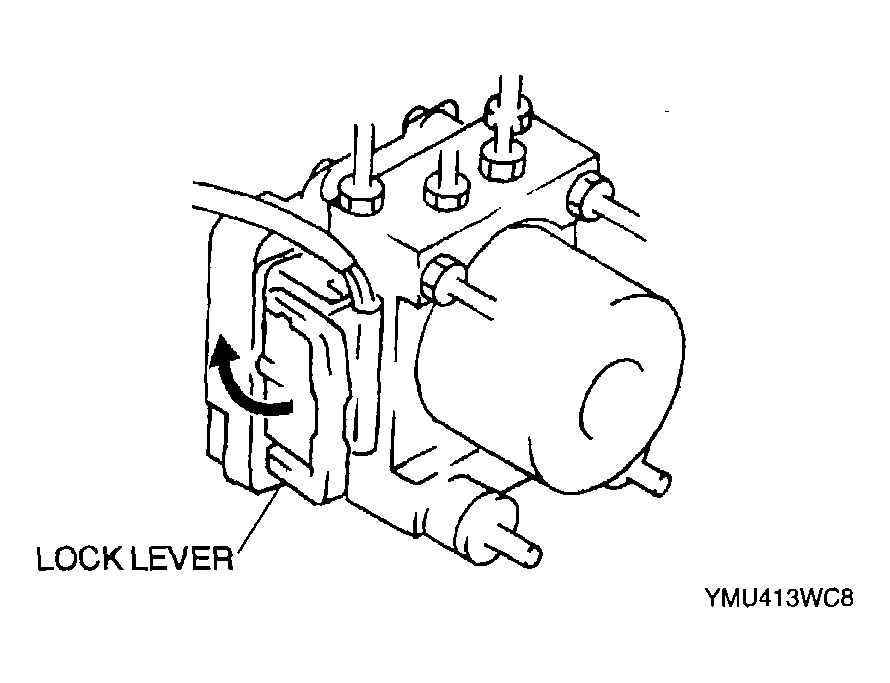

Fig 1: Pulling Lock Lever
G04328662Courtesy of MAZDA MOTORS CORP.
