Antilock Brake System Location Index

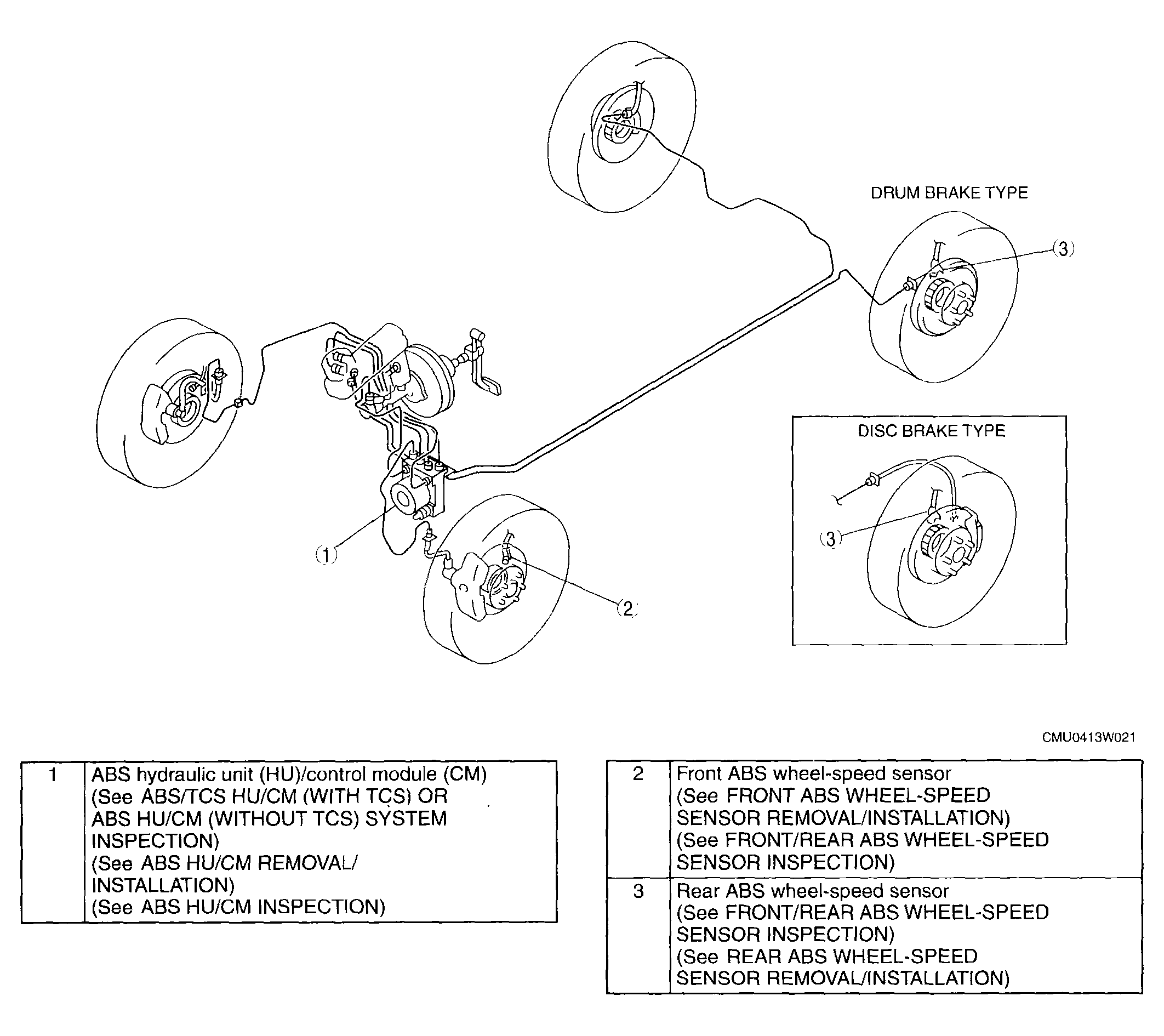

Fig 1: Identifying Antilock Brake System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
