Front Abs Wheel-Speed Sensor Removal/Installation

1. For left side, remove the air cleaner and air filter. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [AJ] )

   EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM COMPONENT REMOVAL/INSTALLATION [AJ] )

2. Remove in the order indicated in Fig 1.
3. Install in the reverse order of removal.

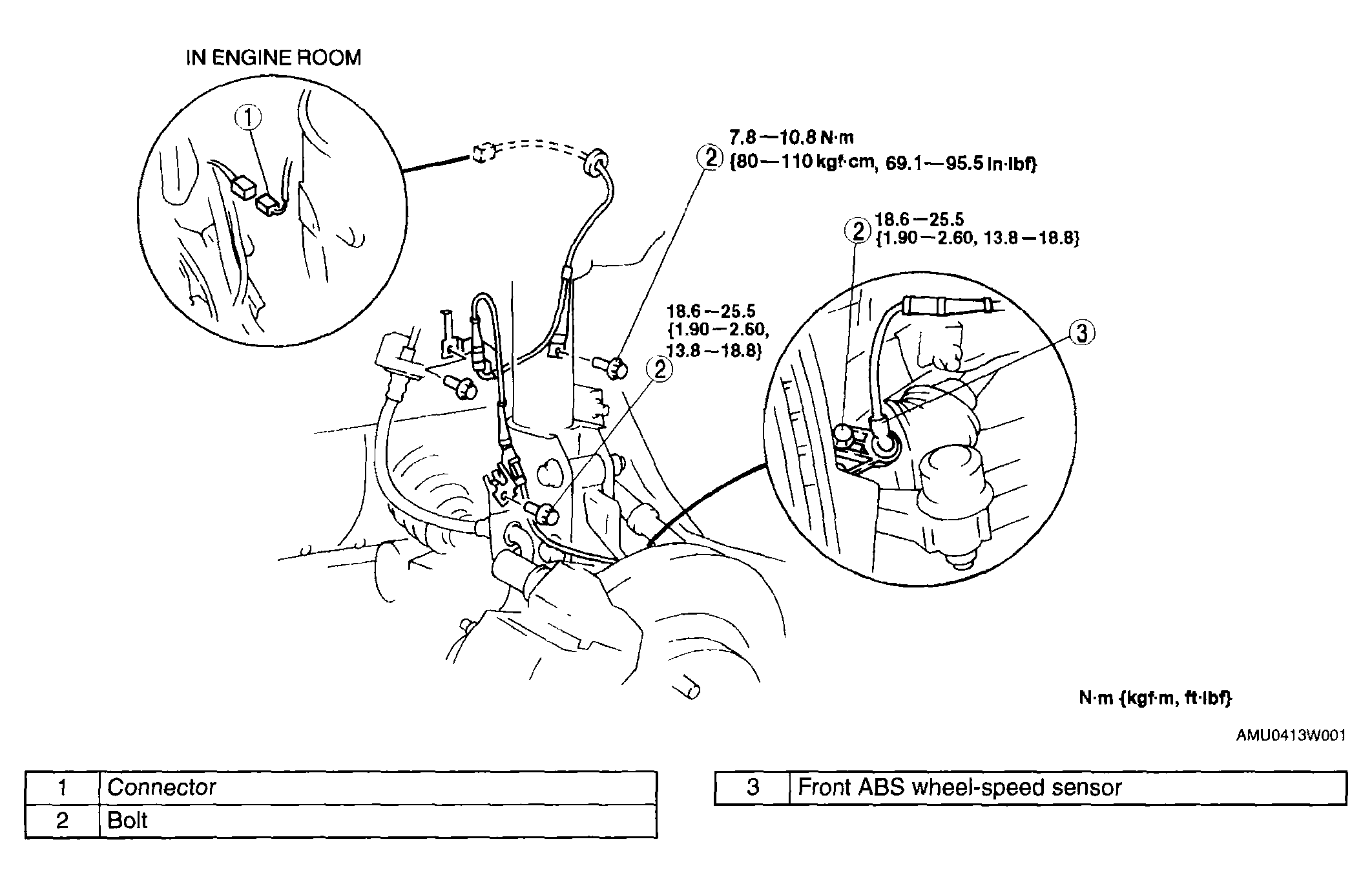

Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
