TCS Off Switch Inspection
Remove the TCS OFF switch.
Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.

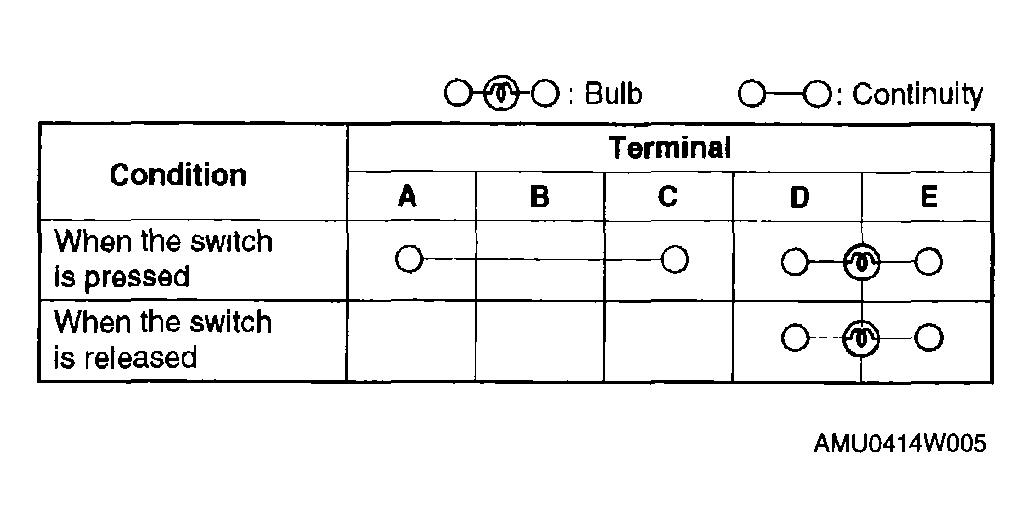

Fig 1: TCS Off Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

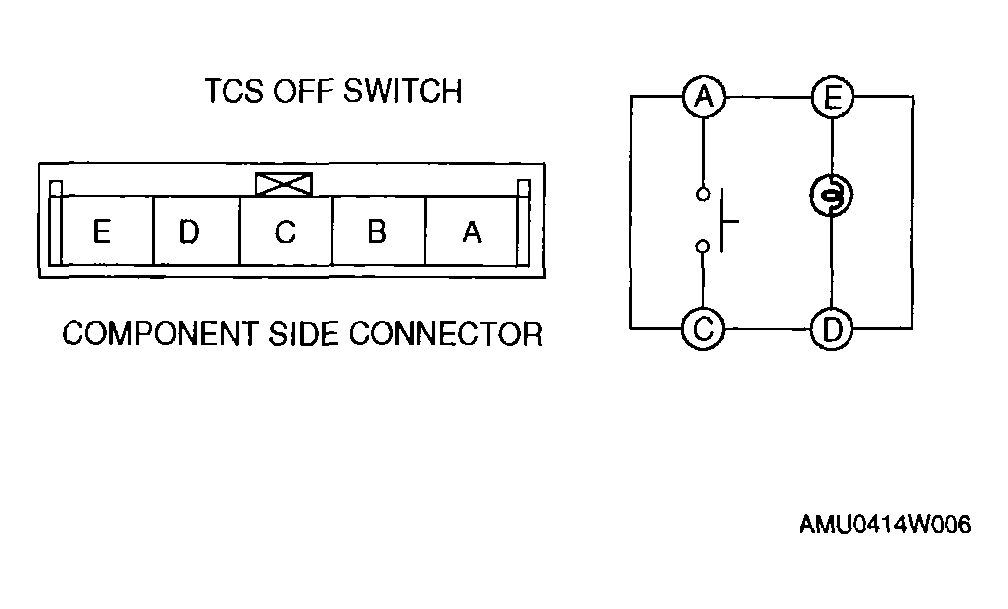

Fig 2: TCS Off Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
If not within the specification, replace the TCS OFF switch.
