Fuse Block Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

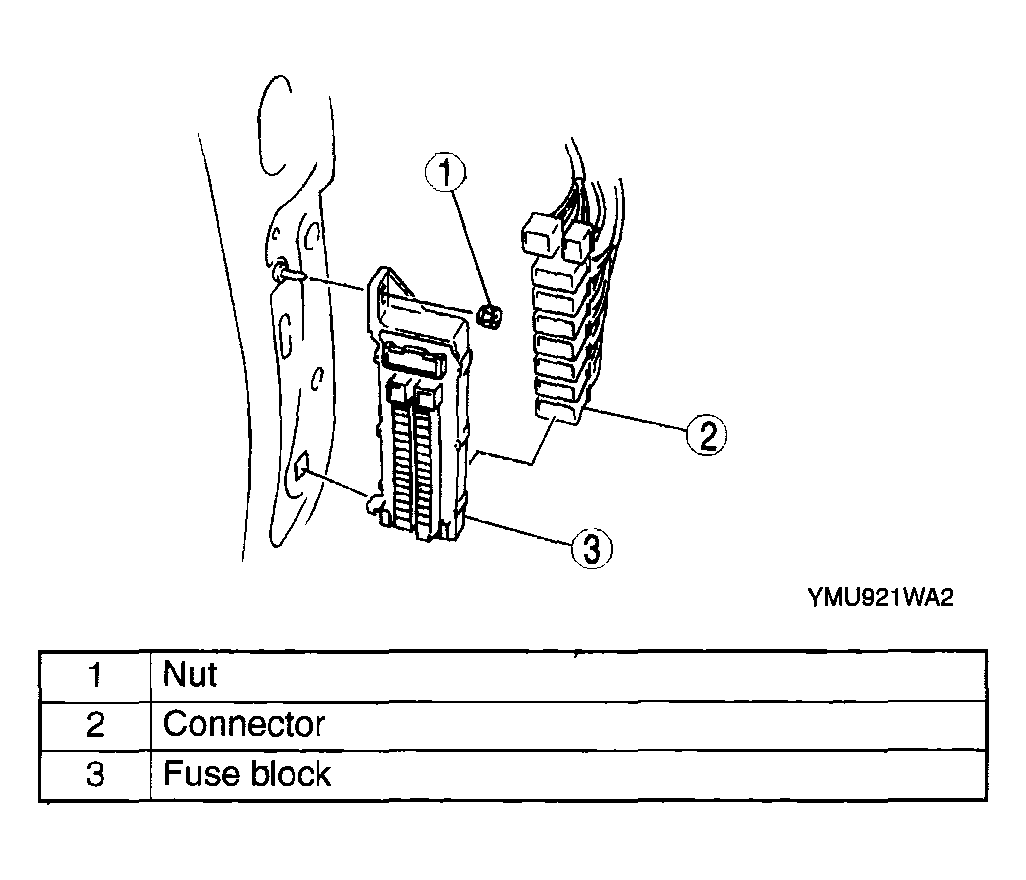

Fig 1: Identifying Fuse Block
G04329821Courtesy of MAZDA MOTORS CORP.
