Generator Disassembly/Assembly [AJ]

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.
  1. Disassemble in the order indicated in Fig 1.
  2. Assemble in the reverse order of disassembly.

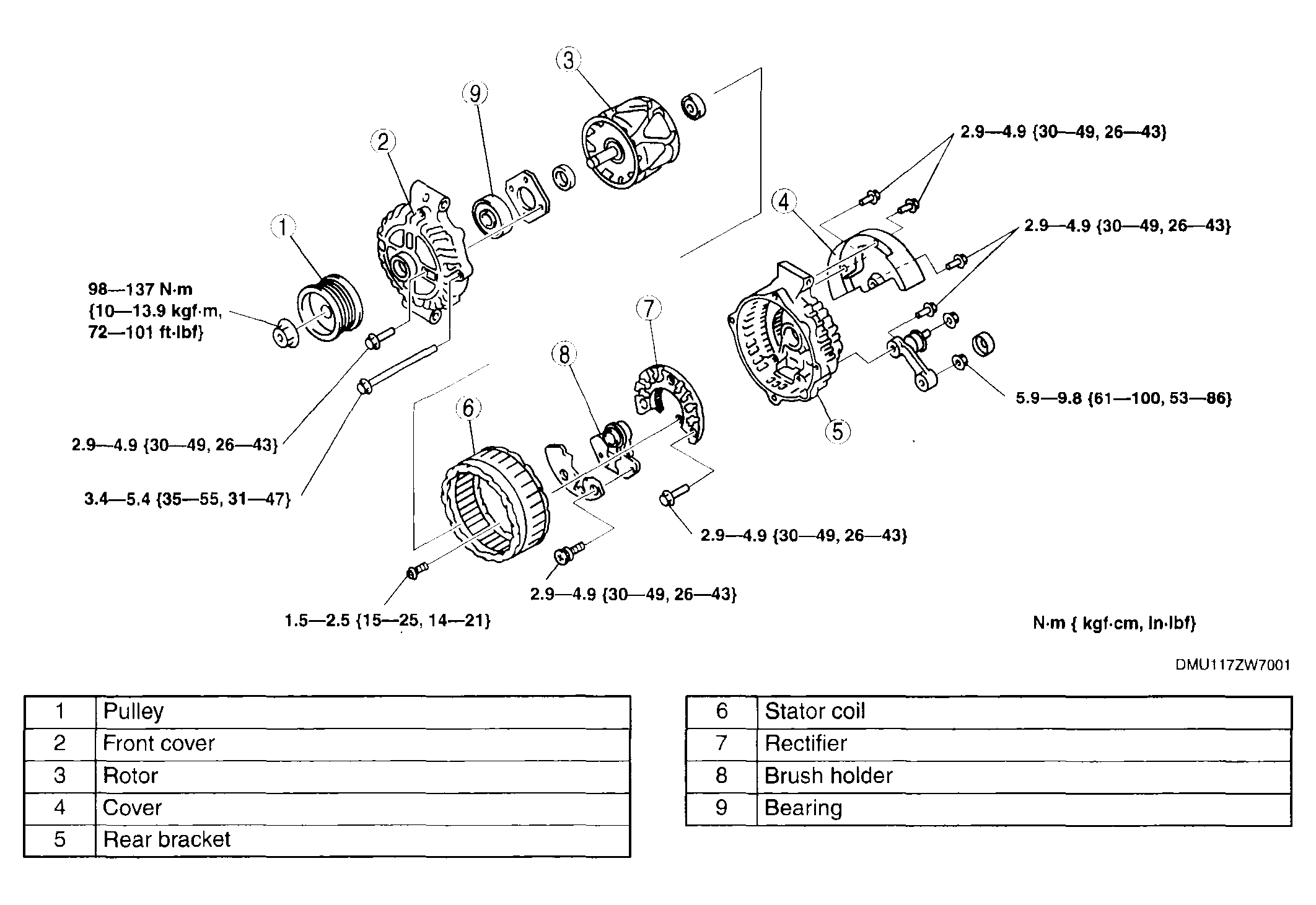

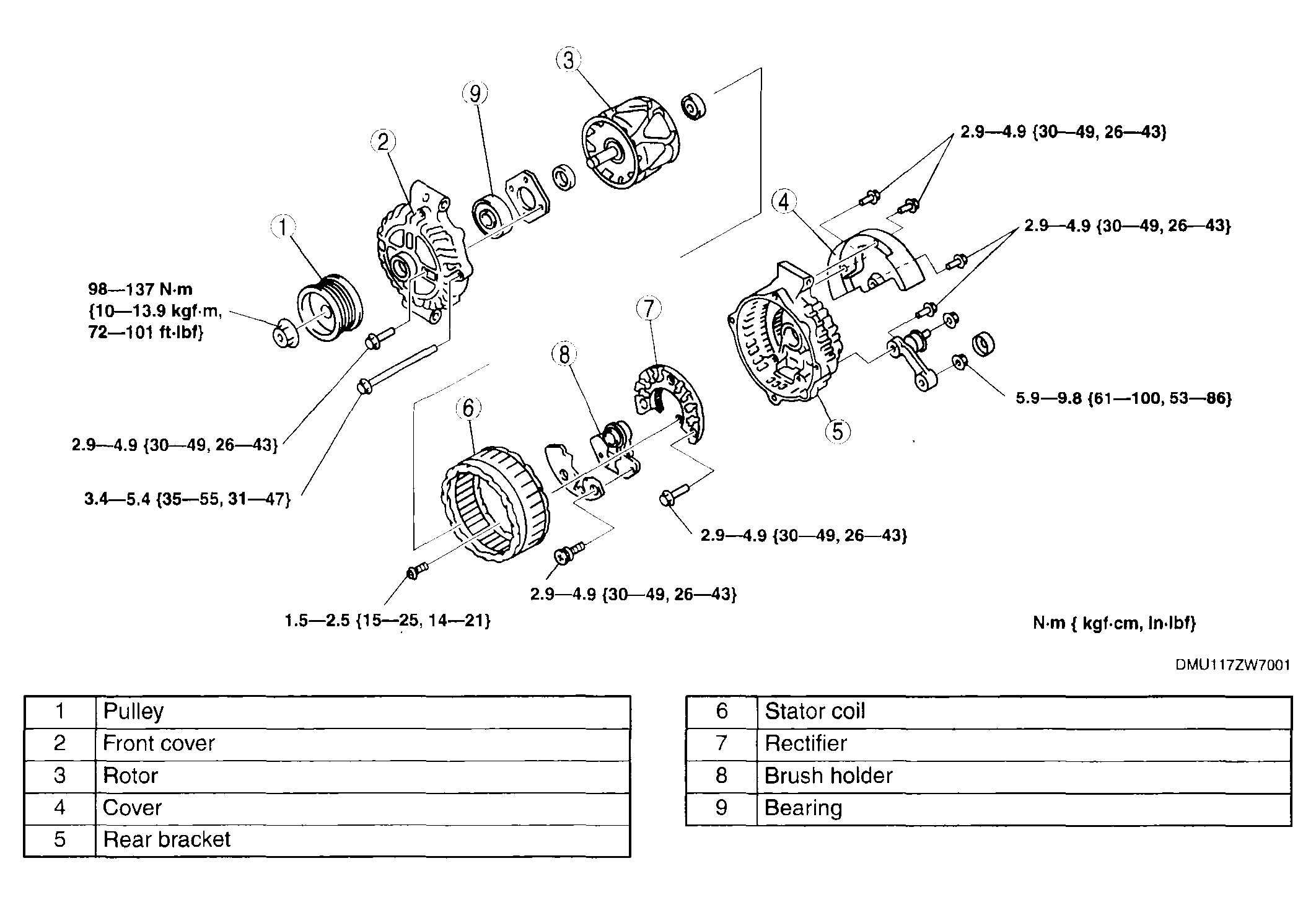

Fig 1: Exploded View Of Generator With Torque Specifications
G04328249Courtesy of MAZDA MOTORS CORP.
