Starter Removal/Installation

WARNING:
  • When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the battery before performing the following operation.
  1. Remove the battery.
  2. Remove the air cleaner.
  3. Disconnect the selector cable. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in Fig 1.
  5. Install in the reverse order of removal.

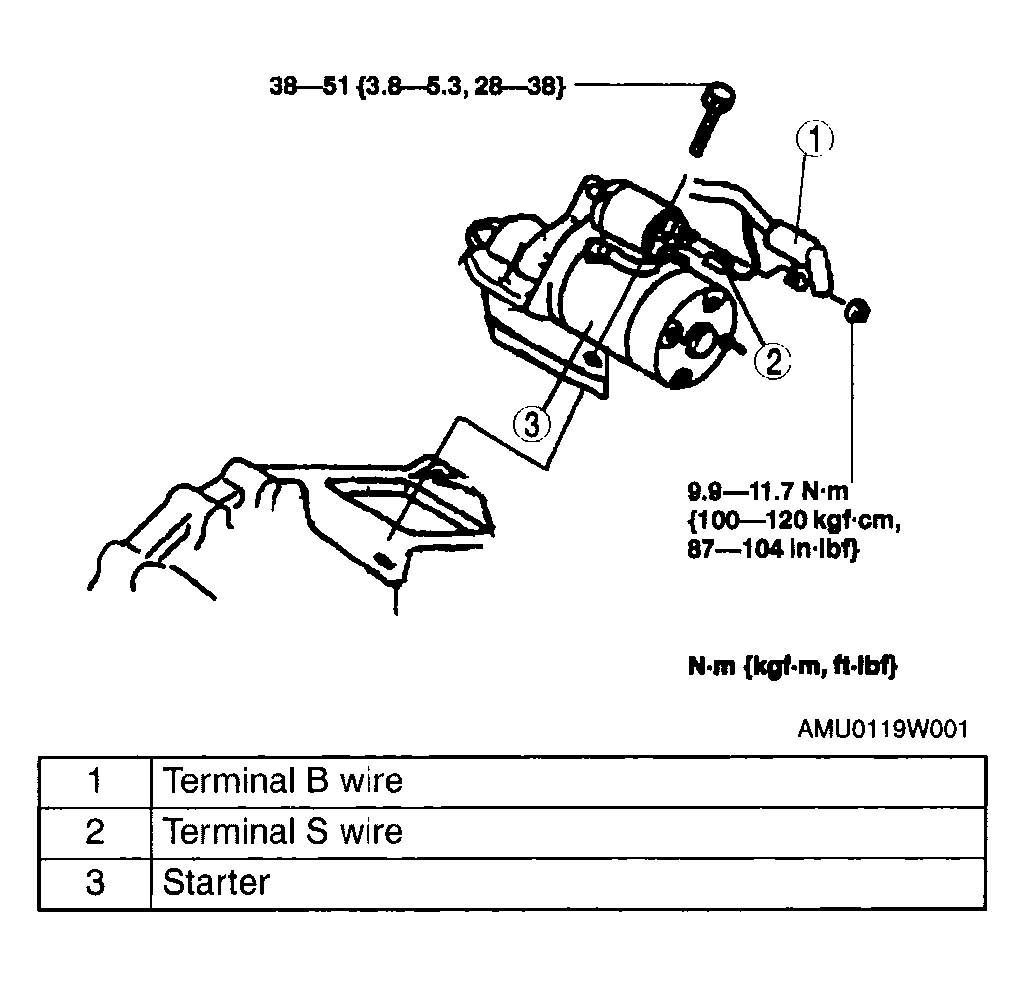

Fig 1: Removing/Installing Starter With Torque Specifications
G04328255
