Open circuit

If there is no continuity, the circuit is open. Repair or replace the harness.
- ECT sensor terminal A (harness-side) and 104 pin breakout box terminal 41
- ECT sensor terminal B (harness-side) and 104 pin breakout box terminal 20

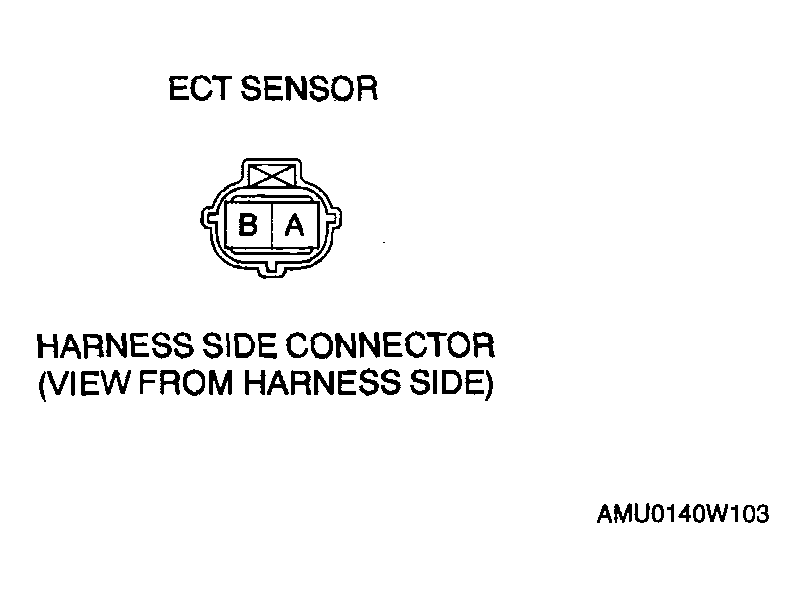

Fig 1: Identifying ECT Sensor Connector

Courtesy of MAZDA MOTORS CORP.
