Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference) CKP
>>
Purge control signal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Purge control signal
PCM terminal: 85 (+)-100 (-)
Oscilloscope setting: 2V/DIV (Y), 10ms/DIV (X), DC range
Vehicle condition: idle after warm up

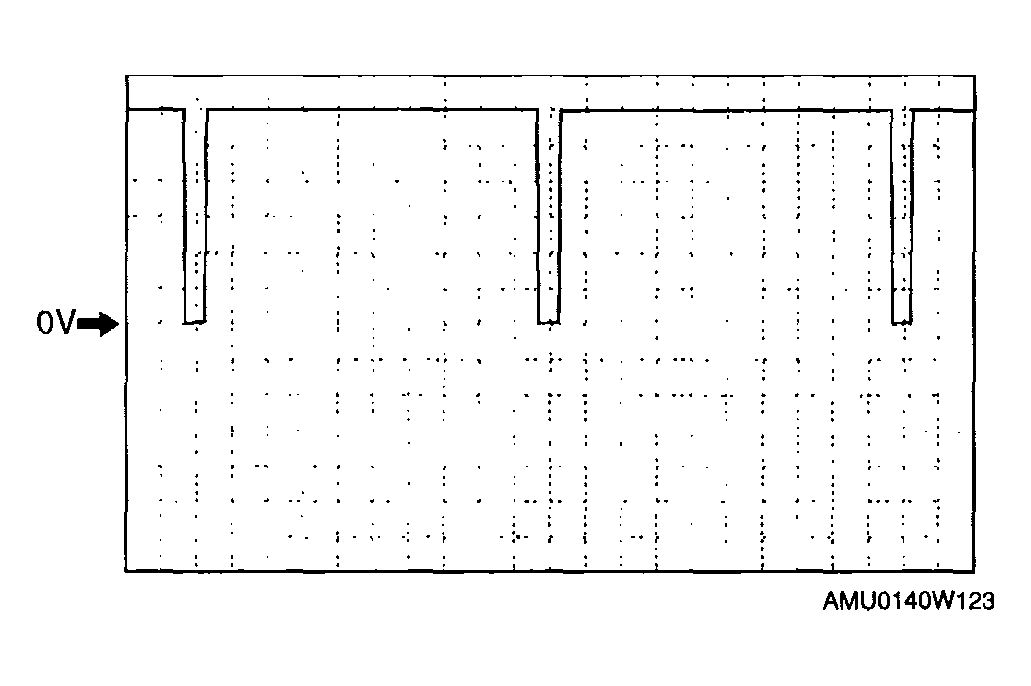

Fig 1: Identifying Purge Control Signal Waveform
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
