Torque reduction request signal
PCM terminal: 91 (+)-100 (-)
Oscilloscope setting: 1 V/DIV (Y), 2ms/DIV (X), DC range
Vehicle condition: idle after warm up

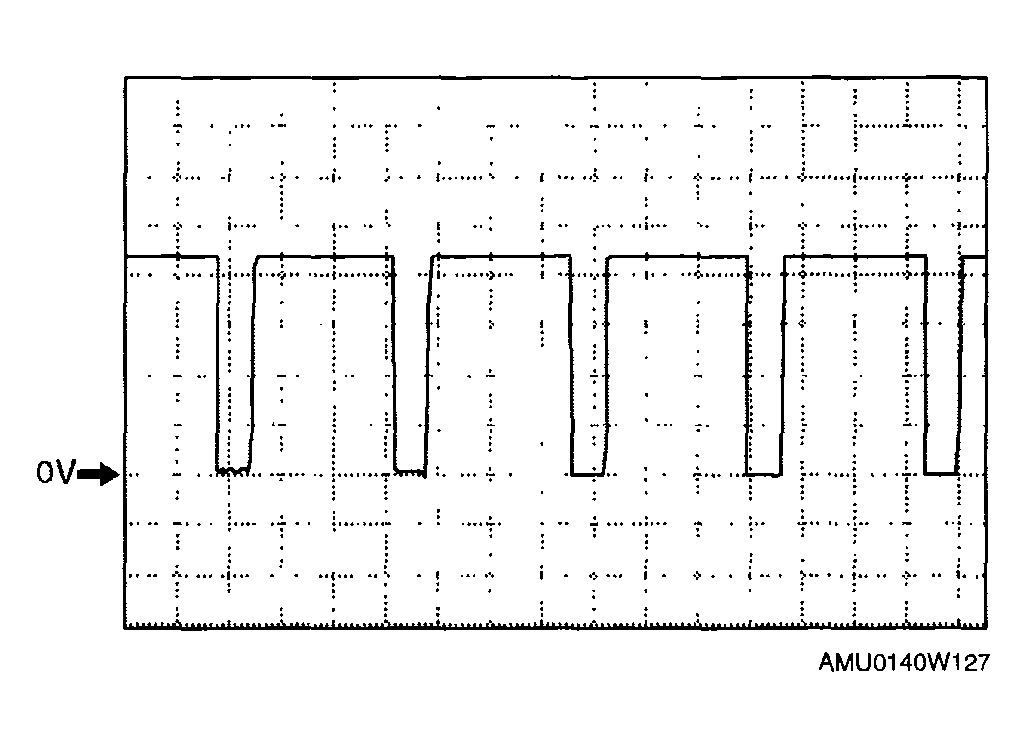

Fig 1: Identifying Torque Reduction Request Signal Waveform
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
