Resistance Inspection
NOTE:
- Perform the following test only when directed.
- Turn the ignition switch to LOCK position.
- Disconnect the negative battery cable.
- Disconnect the fuel injector connectors.

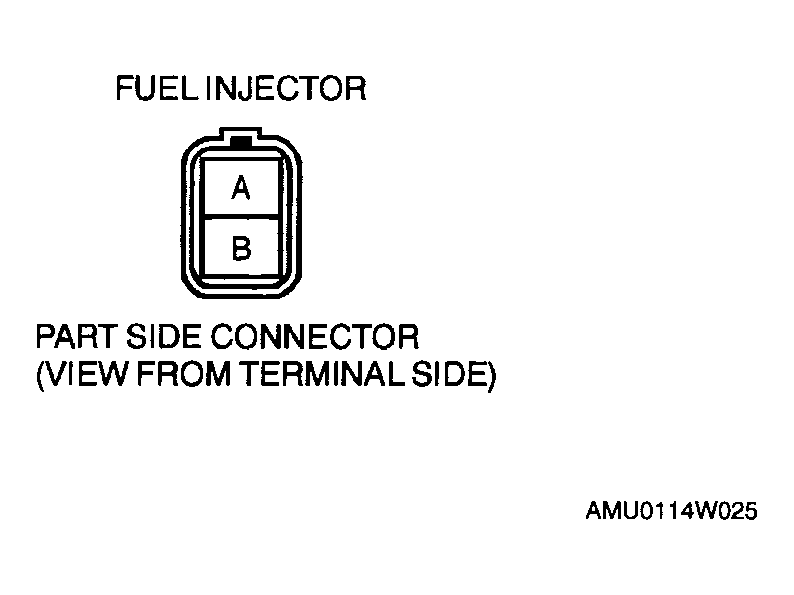

- Measure the resistance of the fuel injector using an ohmmeter.
- If not as specified, replace the fuel injector. (See FUEL INJECTOR REMOVAL/INSTALLATION .)
- If as specified but "Operation Test" is failed, carry out the "Circuit Open/Short Inspection". Inspect for open or short circuit.
Resistance
13.1-14.5 ohms [20 °C {68 °F}]
