Plastic Fuel Hose Removal Note

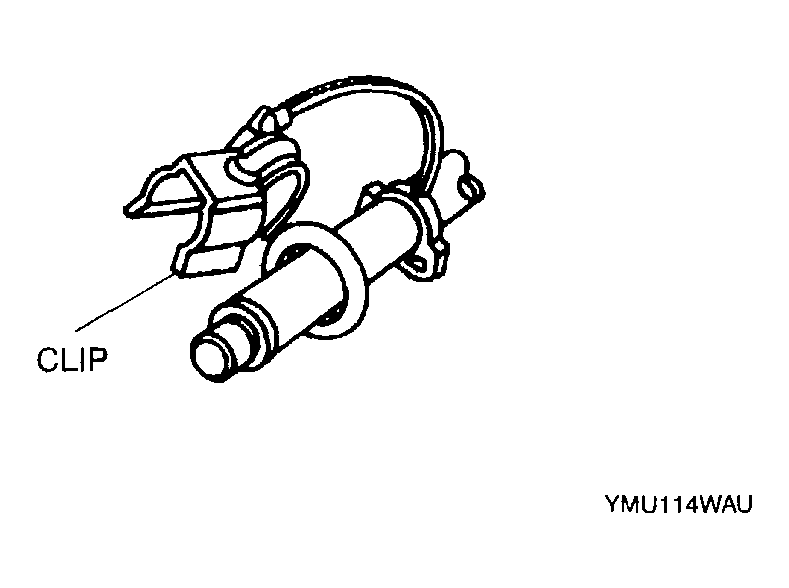

Remove the clip from the quick release connector.

Fig 1: Removing Clip From Quick Release Connector

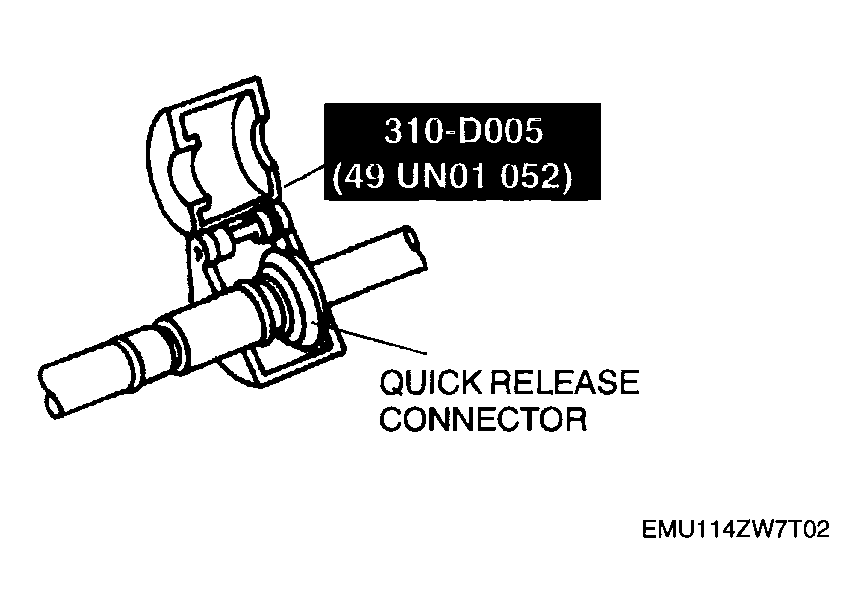

Set the SST (49 UN01 052) for 1/2 inch hose onto the quick release connector.

Fig 2: Connecting SST In Quick Release Connector

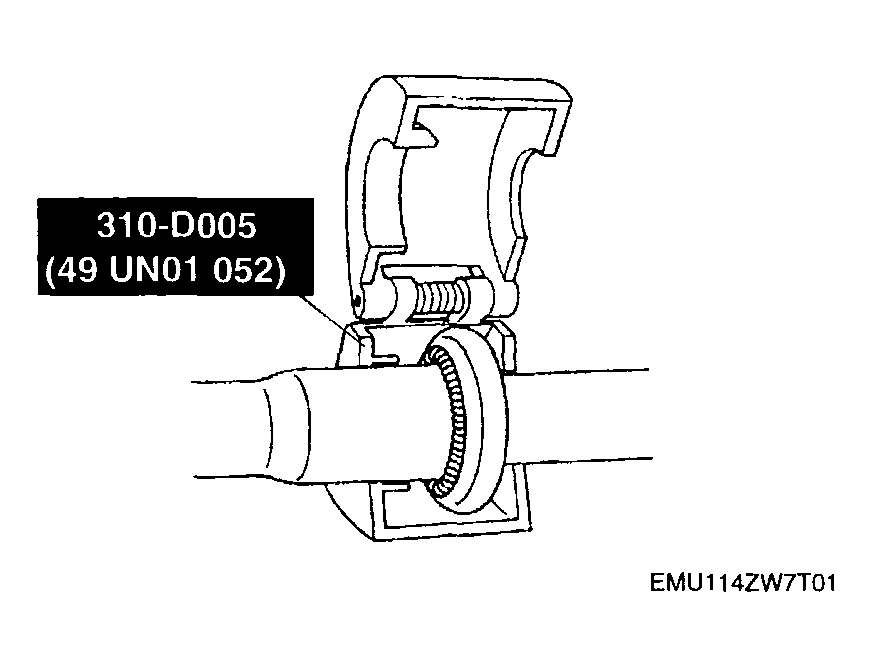

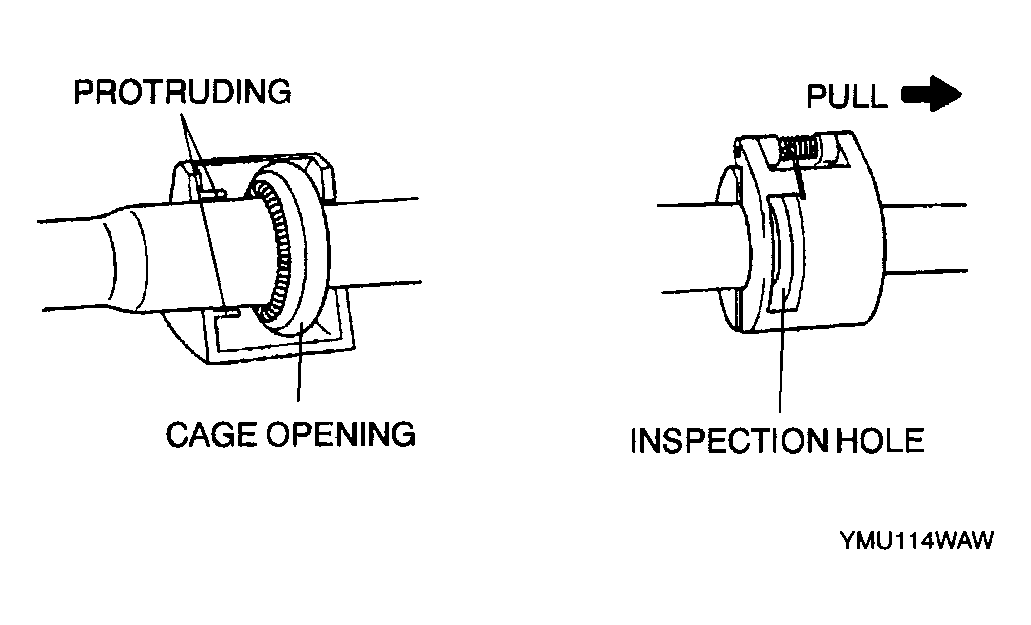

While looking through the inspection hole of the SST , insert the protruding part of the SST until it makes contact with the cage opening.

Fig 3: Inserting Protruding Part Of SST

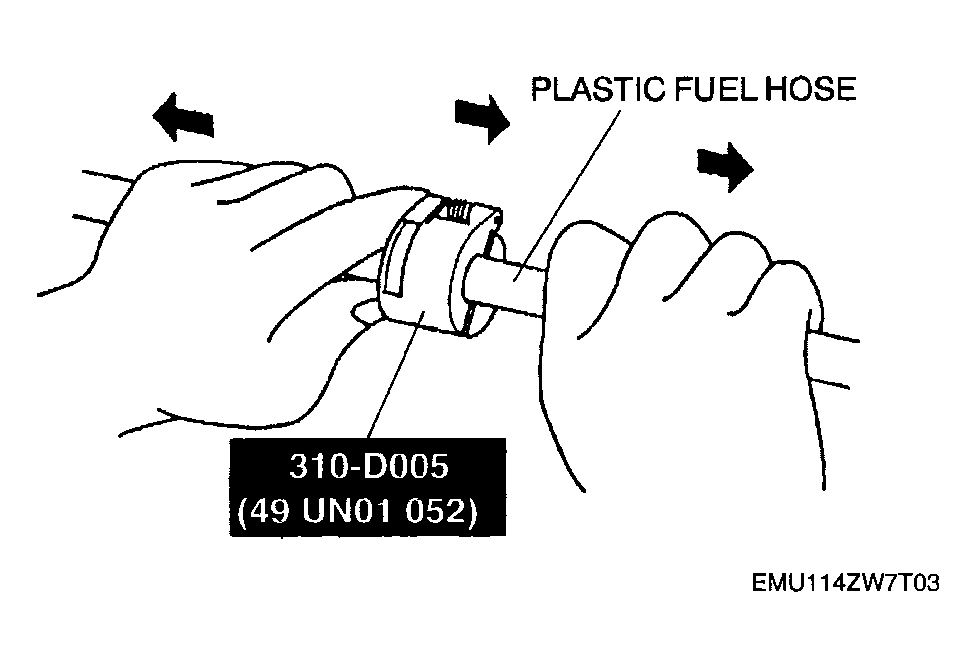

Use the SST to disconnect the plastic fuel hose from the fuel distributor by pulling the plastic fuel hose side.
NOTE:
- The plastic fuel hose can be disconnected easily from the fuel distributor by pulling the plastic fuel hose while maintaining the pressure of the protruding part of the SST.
Fig 4: Disconnecting Plastic Fuel Hose By Pulling
Remove the SST from the disconnected quick release connector.

Fig 5: Removing Quick Release Connector

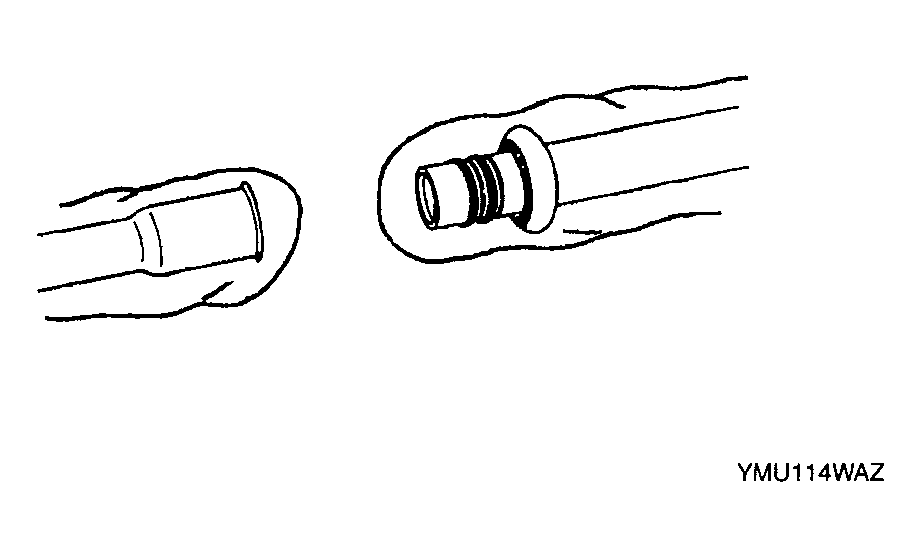

Cover the disconnected quick release connector and fuel distributor with the vinyl sheets or the like to prevent it from being scratched or contaminated with foreign material.

Fig 6: Covering Disconnected Quick Release Connector And Fuel Distributor With Vinyl Sheets
