Quick Release Connector Removal Note

CAUTION:
  • Be careful not to damage the pipe when unlocking the retainer.
NOTE:
  • If the quick release connector is removed, replace the retainer with a new one.
  1. Follow "BEFORE SERVICE PRECAUTION" and remove dirt from the connecting surfaces before performing any work operations.
    NOTE:
    • The retainer is attached to the pipe even after the connector is disconnected.
  2. Set the SST  parallel to the quick release connector.
    NOTE:
    • The quick release connector can be removed by pushing the center of the retainer tabs.
  3. Hold the center of the retainer tabs with the SST  ends and press the retainer.
  4. Pull the connector side and disconnect the quick release connector.
  5. Raise a retainer tab using the SST  and remove the retainer.
  6. Cover the disconnected quick release connector and joint port with vinyl sheeting or a similar material to prevent it from becoming scratched or dirty.

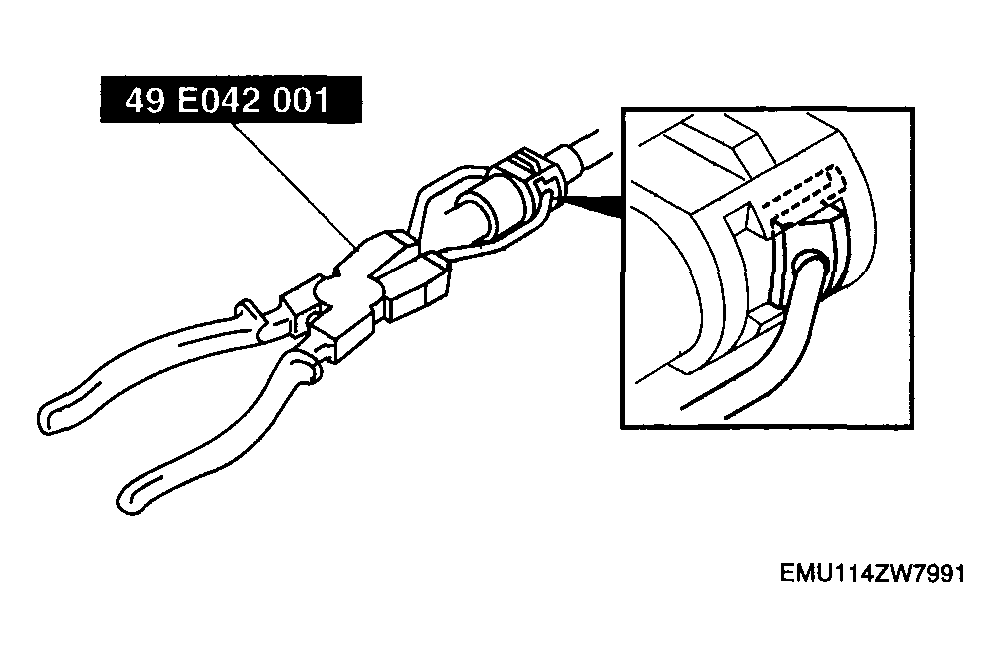

Fig 1: Holding Center Of Retainer Tabs With SST
G04328142

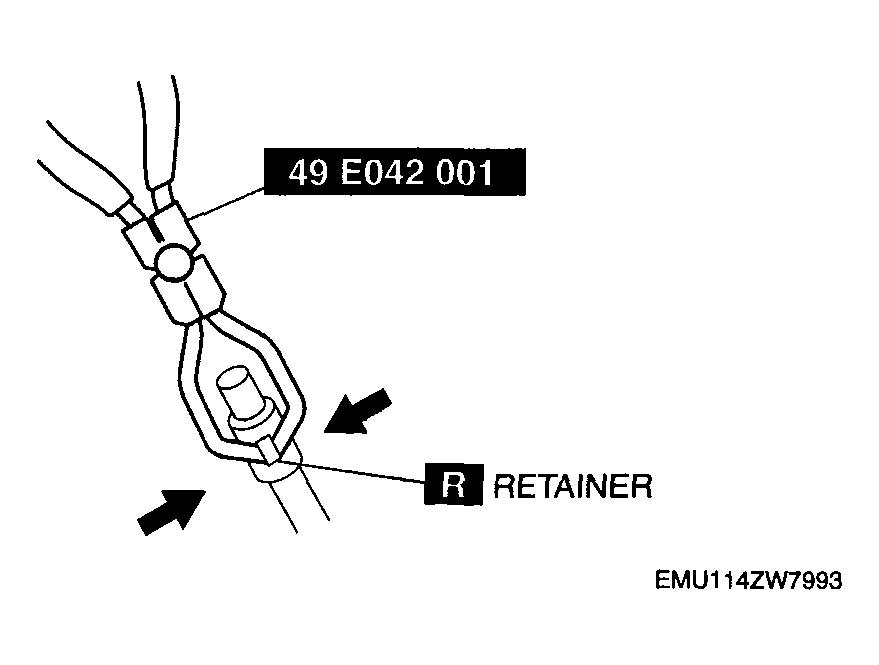

Fig 2: Removing Retainer Using SST
G04328143
