Engine Technical Data [AJ]

ENGINE TECHNICAL DATA

Item

Engine

MECHANICAL

Compression pressure

Compression pressure of lowest cylinder must be within 75% of highest
See COMPRESSION INSPECTION [AJ] )

Pushing distance of the camshaft oil seal

(mm {in})

2.5-3.0 {0.10-0.11} (from the edge of the camshaft oil seal housing)

Pushing distance of the front oil seal

(mm {in})

0-1.0 {0-0.039} (from the edge of the engine front cover)

Pushing distance of the rear oil seal

(mm {in})

0-2.0 {0-0.078} (from the edge of the cylinder block)

Idle speed

(rpm)

650-750

Ignition timing

(BTDC)

Approx. 10°

Idle-up speed

(rpm)

No load

650-750

E/L ON⁽¹⁾

650-750

A/C ON

670-770

P/S ON

700-800

Idle mixture

HC concentration

Within the regulation

CO concentration

Within the regulation

LUBRICATION SYSTEM

Oil pressure (approx. quantity)

(kPa {kgf/cm² , psi} [rpm]

138-310 {1.40-3.17, 20-45} [1,500]

Oil capacity (approximate quantity)

Oil replacement

(L {US qt, lmp qt})

5.2 {5.5, 4.6}

Oil and oil filter replacement

(L {US qt, lmp qt})

5.7 {6.0, 5.0}

Total (dry engine)

(L {US qt, lmp qt})

6.2 {6.6, 5.5}

COOLING SYSTEM

Coolant capacity (approx. quantity)

U.S.A. and CANADA specs.

(L {US qt, lmp qt})

With rear heater: 11.6 {12.3,10.2} Without rear heater: 9.8 {10.4, 8.6}

Except U.S.A. and CANADA specs.

(L {US qt, lmp qt})

With rear heater: 12.0 {12.7,10.6} Without rear heater: 10.2 {10.8, 9.0}

Radiator cap valve opening pressure

(kPa {kgf/cm² , psi})

94-122 {0.95-1.25, 13.6-17.7}

Thermostat

Initial-opening temperature

(°C{°F})

84-88{184-190}

Full-opening temperature

(°C{°F})

99 {210}

Full-open lift

(mm {in})

Above 7.3 {0.29}

Cooling fan motor current

Type A

(A)

25.5-28.5

Type B

(A)

15.5-18.5

FUEL SYSTEM

Fuel line hold pressure

(MPa {kgf/cm² , psi})

More than 0.176 {1.79, 25.5}

Fuel pump maximum pressure

(MPa {kgf/cm² , psi})

0.59-0.80 {6.1- 8.1, 86-116}

Fuel injector

Leakage

Less than 1 drop/2 minutes

Volume

(ml {cc, fl oz.}/15sec.)

49-65 {49-65, 1.7-2.1}

Resistance

(ohm)

13.1-14.5 [at 20°C{68°F}]

⁽¹⁾	Blower motor is operating at high speed. Headlight switch is turned on. Rear window defroster switch is turned on. Cooling fans are operating.

ENGINE TECHNICAL DATA

Item

Engine

CHARGING SYSTEM

Battery

Electrolyte gravity

1.22-1.29 [20 °C {68 °F}]

Back-up current⁽¹⁾

(mA)

Max. 20

Test load chart

(A)

Battery type

55D23L

180

80D26L

195

Slow charge

(A)

Battery type (5-hour rate)

55D23L (48)

4.5-5.5

80D26L (55)

5.5-6.5

Quick charge

(A/30 min.)

Battery type (5-hour rate)

55D23L (48)

80D26L (55)

Generator

Standard voltage

(V)

Ignition switch ON

Terminal

B+

Approx. 1

Approx. 0

Idle [20 °C {68 °F}]

Terminal

13-15

Approx. 3-8

⁽³⁾

Generated current (Reference)

(A)

Terminal B current [Engine speed 1000 rpm]

0⁽²⁾-90

Terminal B current [Engine speed 2000 rpm]

0⁽²⁾-105

Rotor resistance (Between slip rings)

(ohm)

2.5-2.9 [20 °C {68 °F}]

Brush length

Standard

(mm {in})

22.5 {0.89}

Minimum

(mm {in})

5.0 {0.20}

Brush spring force

Standard

(N {kgf, lbf})

4.1-5.3 {0.42-0.54, 0.92-1.19}

Minimum

(N {kgf, lbf})

1.7(0.17,0.38}

IGNITION SYSTEM

Ignition coil

Resistance (Reference)

[25 °C {77 °F}]

Primary coil

(ohm)

0.45-1.15

Secondary coil

(kilohm)

5.0-6.0

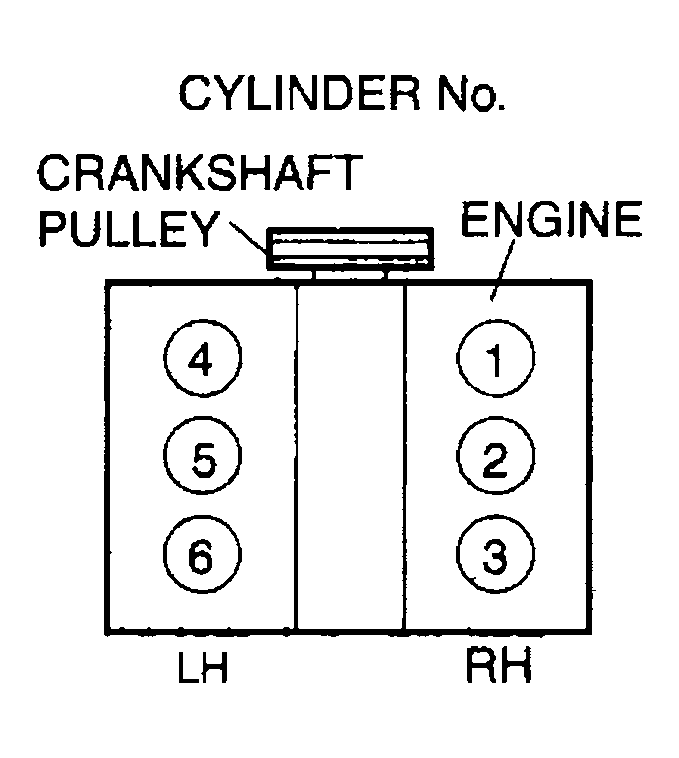

Firing order

Courtesy of MAZDA MOTORS CORP.

Spark plug

Type

Motorcraft

AGSF32WM

Plug gap

(mm {in})

1.32-1.42 {0.051-0.055}

Resistance

(kilohm)

2-20

Tightening torque

(N.m {kgf.om, in.lbf})

9-20 {91-204, 79-177}

STARTING SYSTEM

Starter

No load test

Voltage

(V)

Current

(A)

Below 90

Pinion gap

(mm {in})

0{0}

Commutator maximum runout

(mm {in})

0.05 {0.002}

Commutator diameter

Standard

(mm {in})

29.4 {1.16}

Minimum

(mm {in})

28.8 {1.13}

Commutator depth

Standard

(mm {in})

0.4-0.6 {0.016-0.023}

Minimum

(mm {in})

0.2 {0.008}

Brush length

Standard

(mm {in})

12.3 {0.48}

Minimum

(mm {in})

7.0 {0.28}

Brush spring force

Standard

(N {kgf, lbf})

21.6 {2.20, 4.84}

Minimum

(N {kgf, lbf})

5.9 {0.6, 1.3}

⁽¹⁾	Back-up current is the constant flow of current present (for the audio unit, clock, PCM, etc.) when the ignition switch is off and with the ignition key removed.

⁽²⁾	Lower limit of current must be more than 0A.

⁽³⁾	Turn the following electrical loads on and verify that the voltage reading increases. (Headlights, Blower Motor and Rear Window Defroster)

ENGINE OIL SPECIFICATION

Item	U.S.A and CANADA	Except U.S.A. and CANADA
Engine oil grade	Courtesy of MAZDA MOTORS CORP.	Courtesy of MAZDA MOTORS CORP.
Engine oil viscosity	5 W-20
