Main Amplifier

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable:
  2. Remove the following parts:
    1. Console (See CONSOLE REMOVAL/INSTALLATION .)
    2. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    3. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
    5. Rear package center trim, rear package side trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove in the order indicated. See Fig 1.

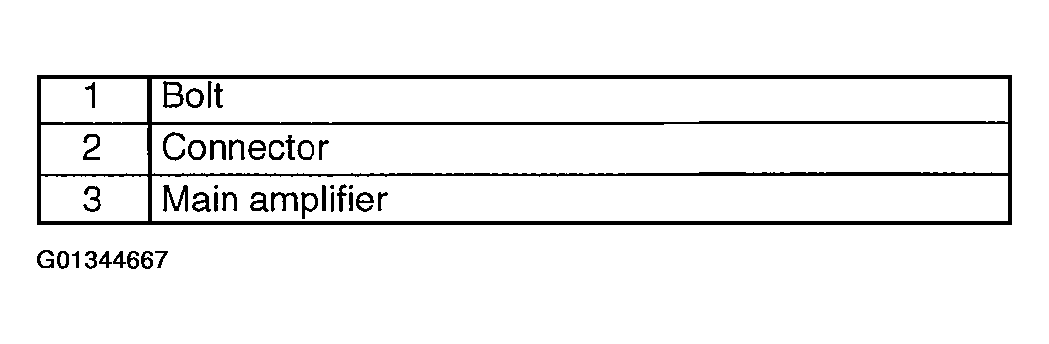

    Fig 1: Removal Order Of Audio Amplifier
    G01344667Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

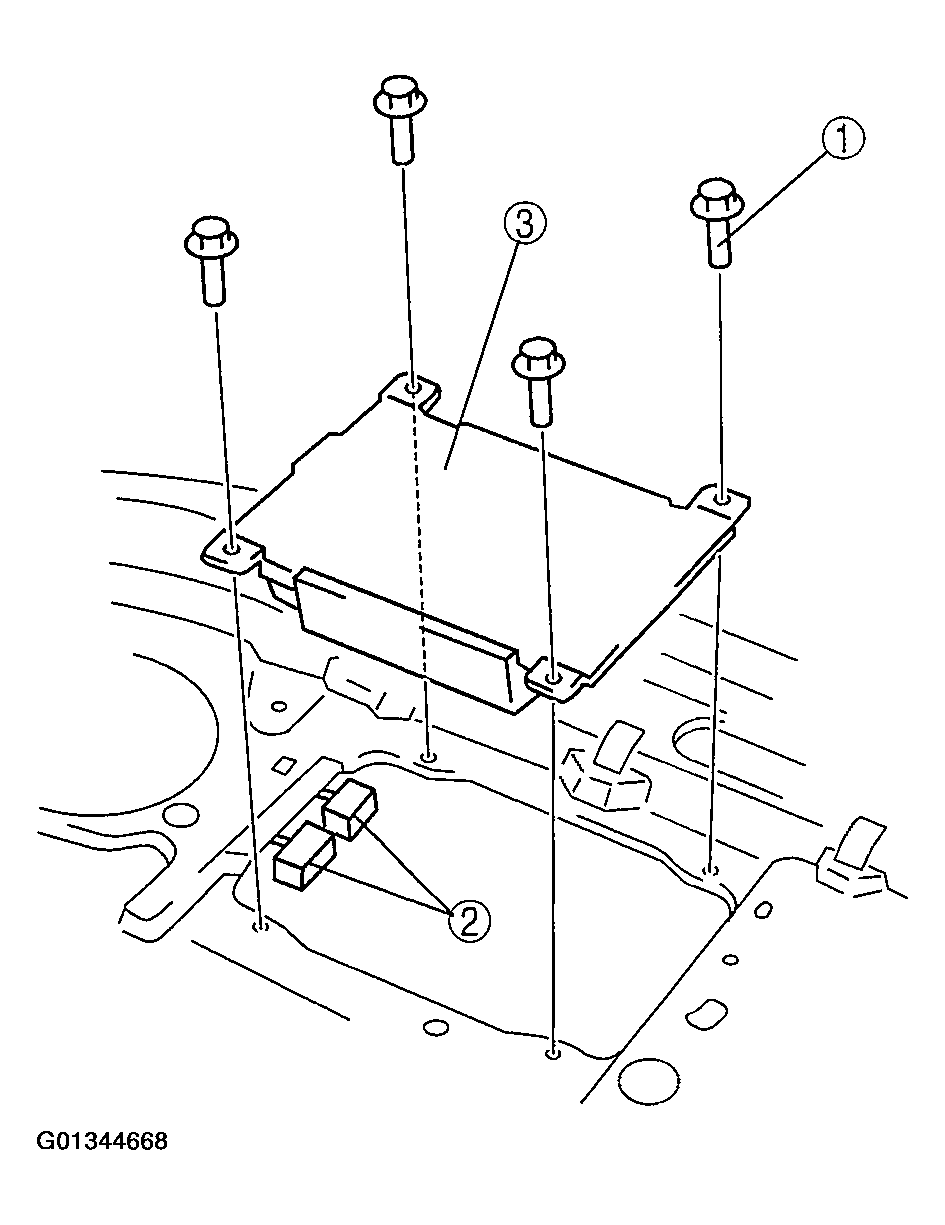

    Fig 2: Removing/Installing Audio Amplifier
    G01344668Courtesy of MAZDA MOTORS CORP.
