Driver's Seat

  1. Disconnect the buckle switch connector.
  2. Inspect for continuity between the buckle switch terminals using an ohmmeter.
    • If not as specified, replace the front buckle.

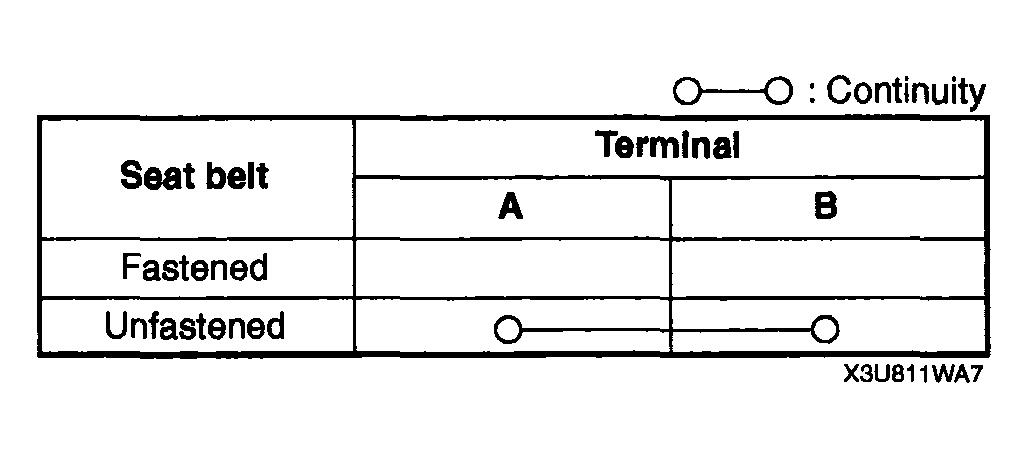

    Fig 1: Buckle Switch Continuity Table
    G04329241Courtesy of MAZDA MOTORS CORP.

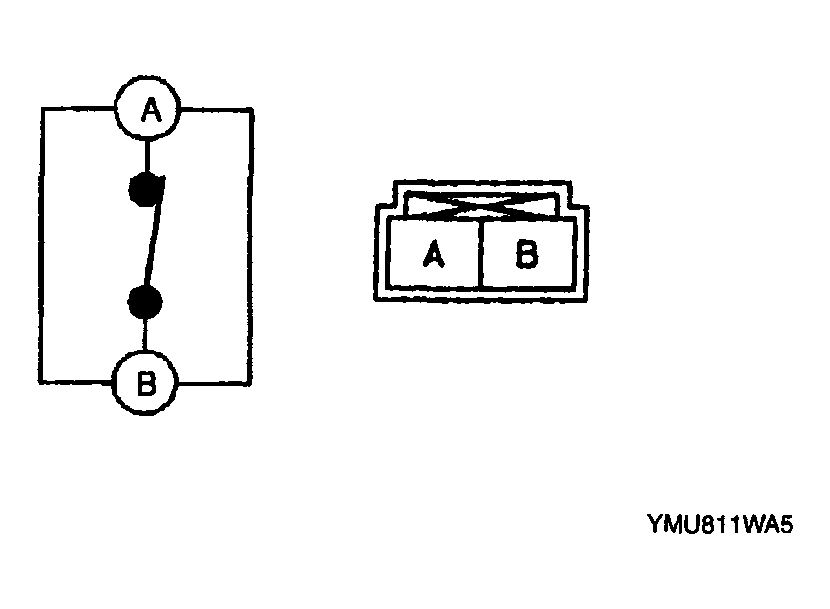

    Fig 2: Buckle Switch Connector Terminals
    G04329242Courtesy of MAZDA MOTORS CORP.
