IAC control signal

PCM terminal: 88 (+)-22 (-)
Oscilloscope setting: 2V/DIV (Y), 0.1 ms/DIV (X), DC range
Vehicle condition: idle after warm up

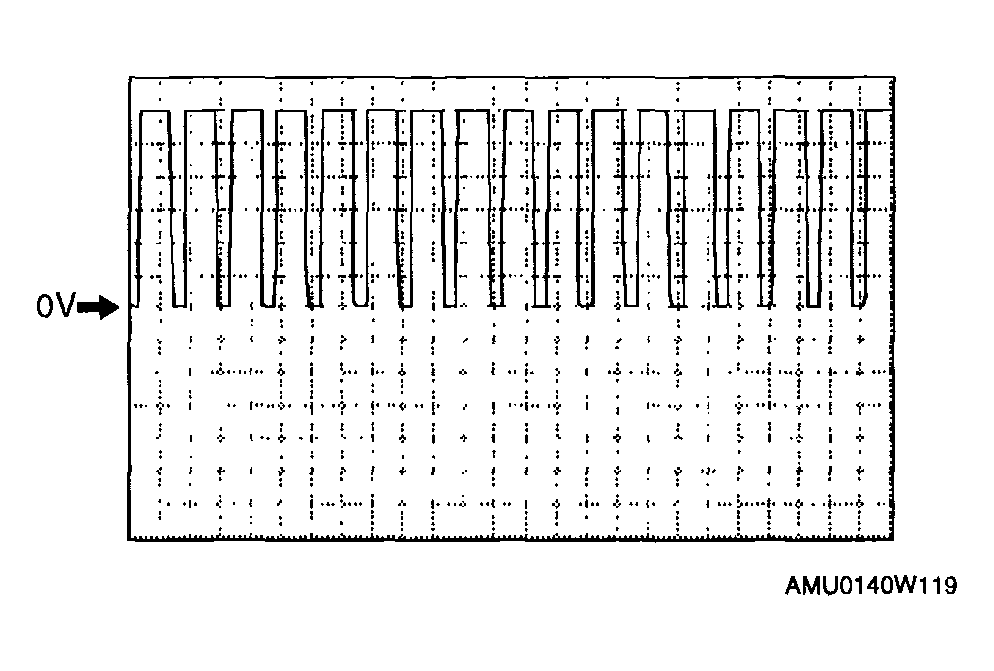

Fig 1: Identifying IAC Control Signal Waveform

G04328320

Courtesy of MAZDA MOTORS CORP.
