Mazda
>>
2006
>>
MPV LX
>>
Repair and Diagnosis
>>
Body & Frame
>>
Glass/Windows/Mirrors
>>
Power Window Main Switch Inspection
>>
Rear right
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear right

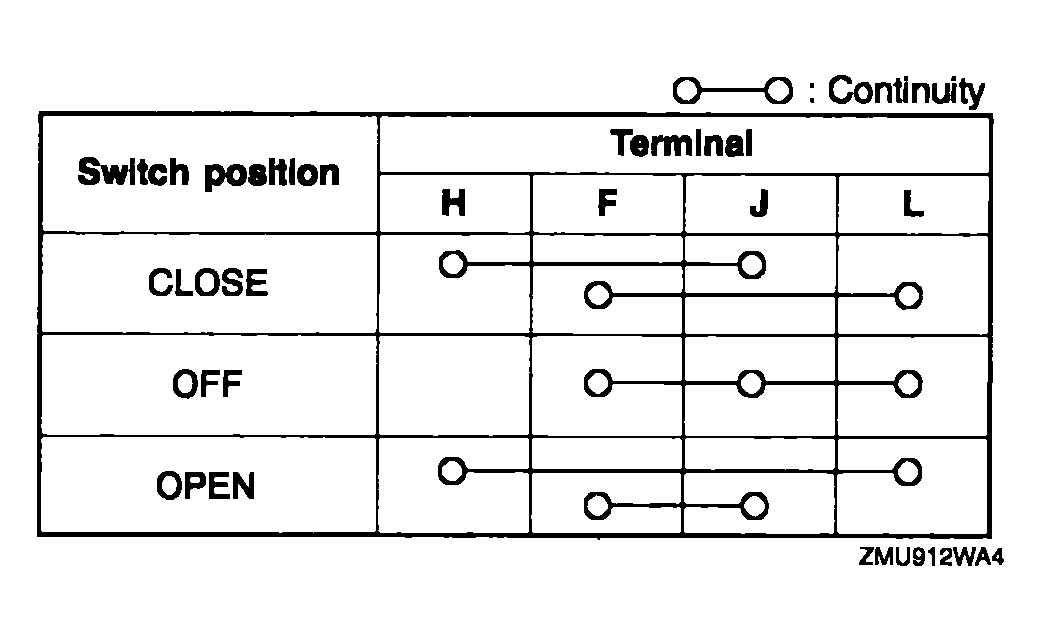

Fig 1: Power Window Main Switch Continuity Chart - (Rear Right)
Courtesy of MAZDA MOTORS CORP.
