Fuel Injector Removal/Installation: Notes
- Complete the "BEFORE REPAIR PROCEDURE". (See BEFORE REPAIR PROCEDURE .)
- Disconnect the negative battery cable.
- Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the fuel injector connectors and remove the harness from the fuel distributor.

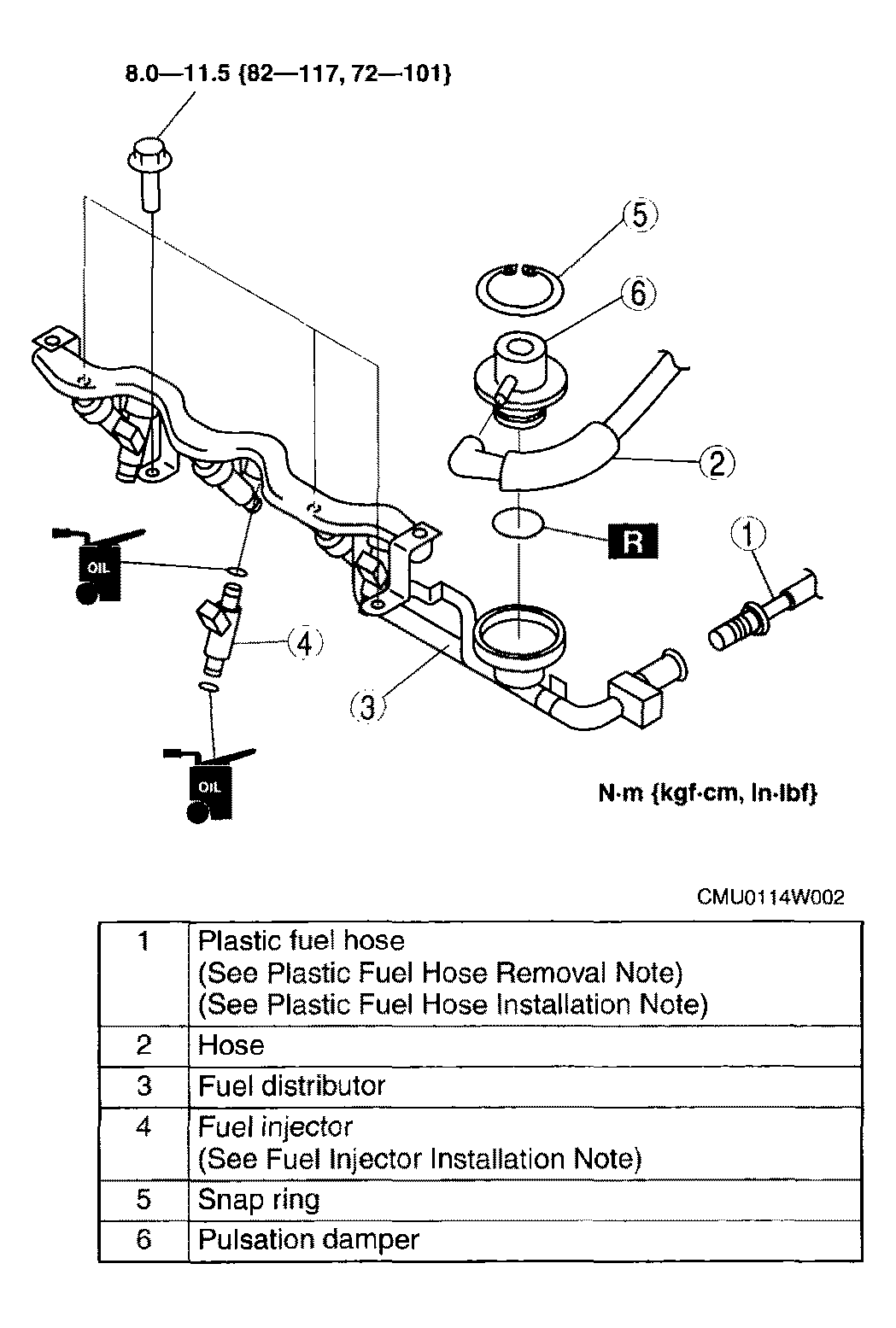

- Remove in the order indicated in Fig 1.CAUTION:
- Disconnecting/connecting the quick release connector without cleaning it may possibly cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
- Install in the reverse order of removal.
- Complete the "After Repair Procedure". (See AFTER REPAIR PROCEDURE .)
