Combined Sensor Inspection

Turn the ignition switch off.
Connect the WDS or equivalent to the DLC-2.
Select the following PIDs, then inspect the lateral acceleration speed and the yaw rate.
- LAT_ACCL: (lateral acceleration speed)
- YAW_RATE: (yaw rate)
1. Lateral acceleration speed inspection

  Fig 1: Locating DLC-2 Connector
  Courtesy of MAZDA MOTORS CORP.
  1. Verify the LAT_ACCL change when the combined sensor is tilted to the left and right.
    - If there is any malfunction, replace the combined sensor.
  Standard

  When the sensor is tilted to the right (A):

  LAT_ACCL changes negatively.

  When the sensor is tilted to the left (B):

  LAT_ACCL changes positively.

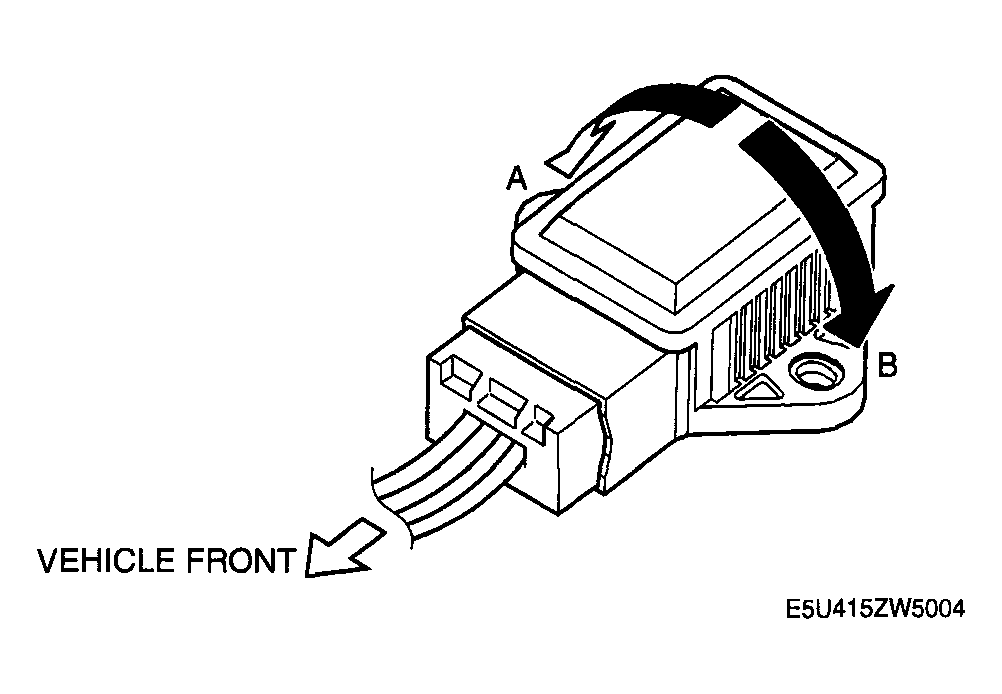

  Fig 2: Identifying LAT ACCL
  Courtesy of MAZDA MOTORS CORP.
2. Yaw rate inspection
  1. Verify the YAW_RATE change when the combined sensor is rotated to the left and right.
    - If there is any malfunction, replace the combined sensor.
  Standard

  When the sensor is rotated to the right (A):

  YAW_RATE changes negatively.

  When the sensor is rotated to the left (B):

  YAW RATE changes positively.

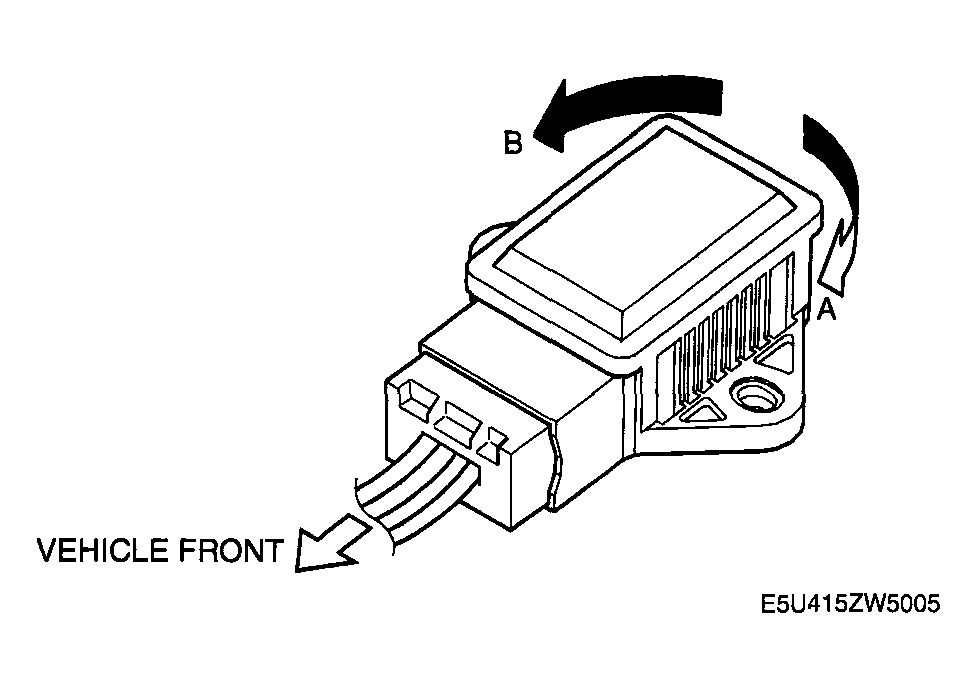

  Fig 3: Identifying Combined Sensor Position
  Courtesy of MAZDA MOTORS CORP.
