Combined Sensor Removal/Installation

CAUTION:

The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.

Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
Remove in the order indicated in Fig 1 .

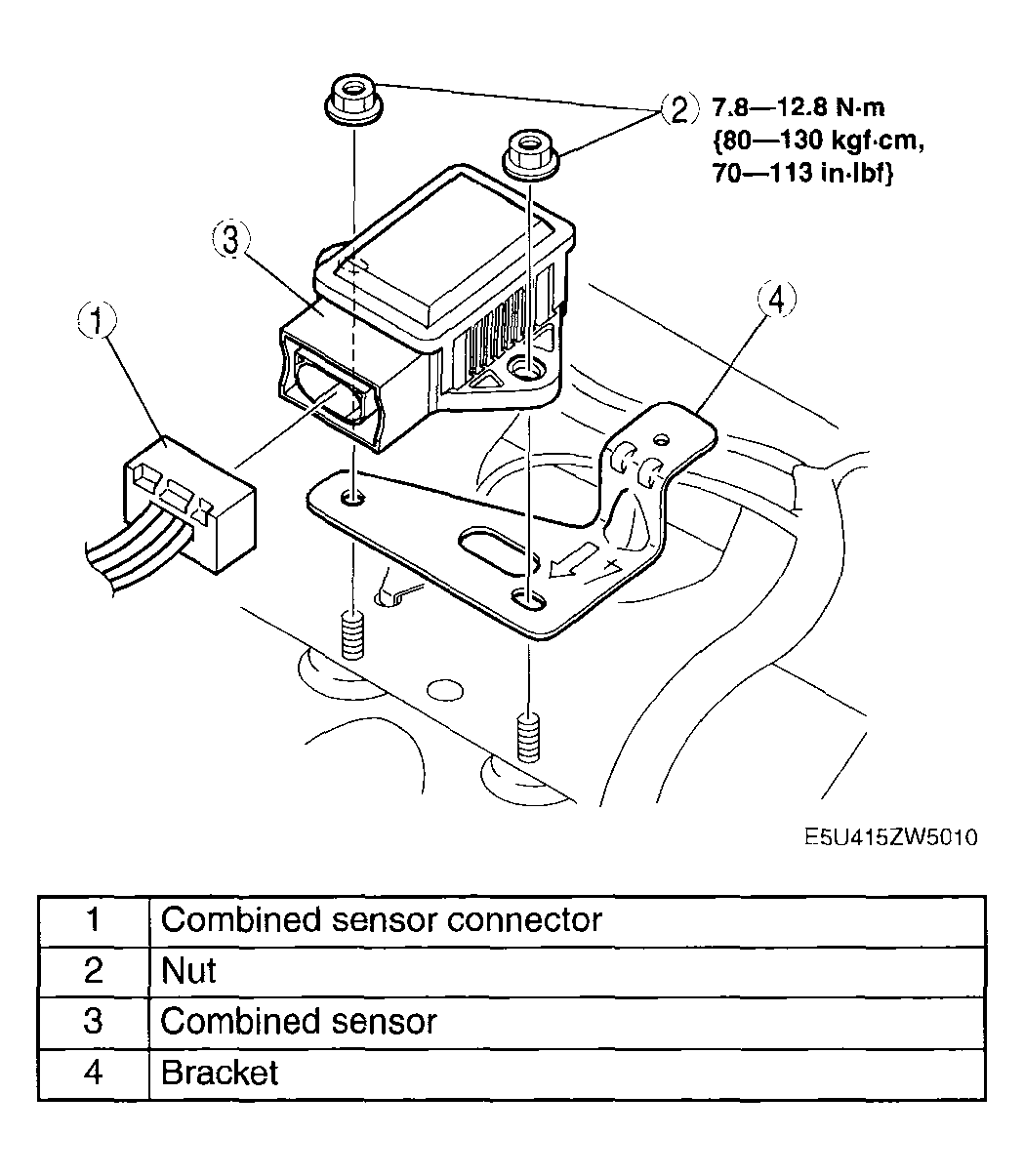

Fig 1: Combined Sensor With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
After installation, perform the combined sensor initialization procedure. (See COMBINED SENSOR INITIALIZATION PROCEDURE .)
