Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe to the DSC HU/CM and brake pipe joint referring to the figure.
  2. Tighten the brake pipe to the specified torque using the SST  (49 0259 770B).

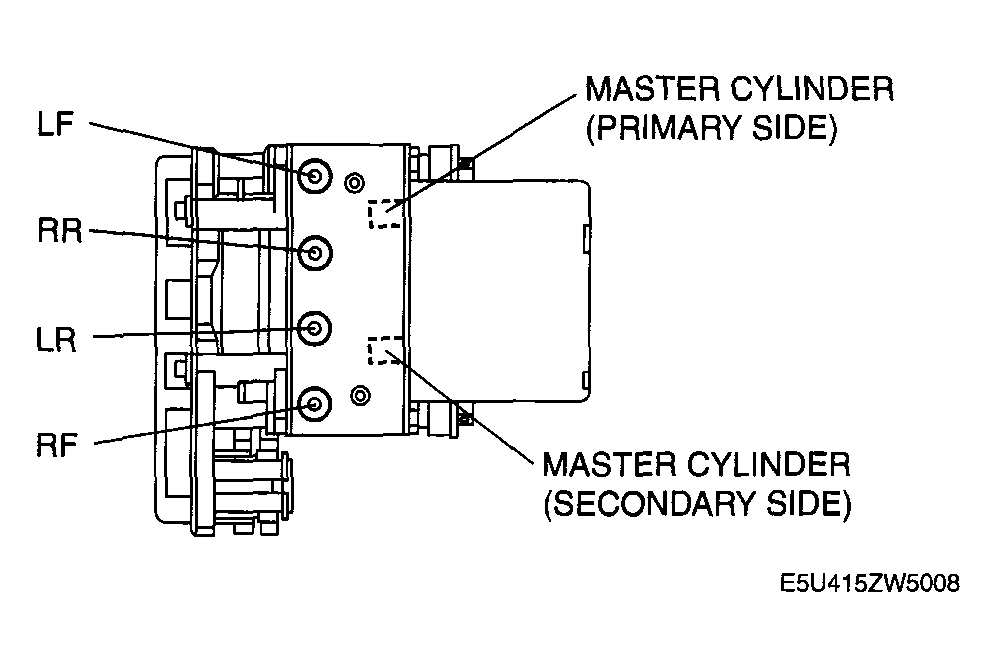

    Fig 1: Installing Brake Pipe
    G04318440Courtesy of MAZDA MOTORS CORP.
