DSC Off Switch Inspection

Remove the DSC OFF switch.
Verify that the continuity is as indicated in Fig 1 .
- If not as indicated in Fig 1 replace the DSC OFF switch.

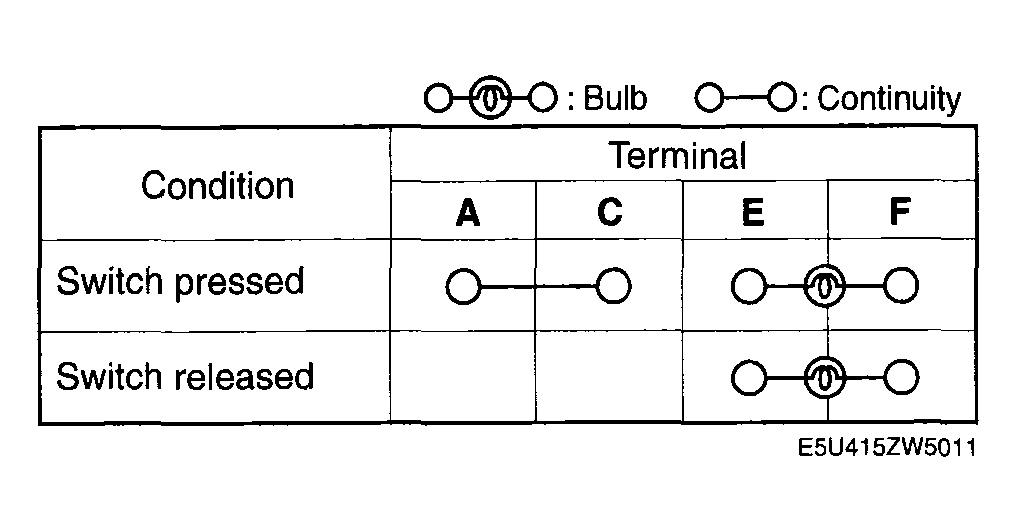

Fig 1: DSC OFF Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

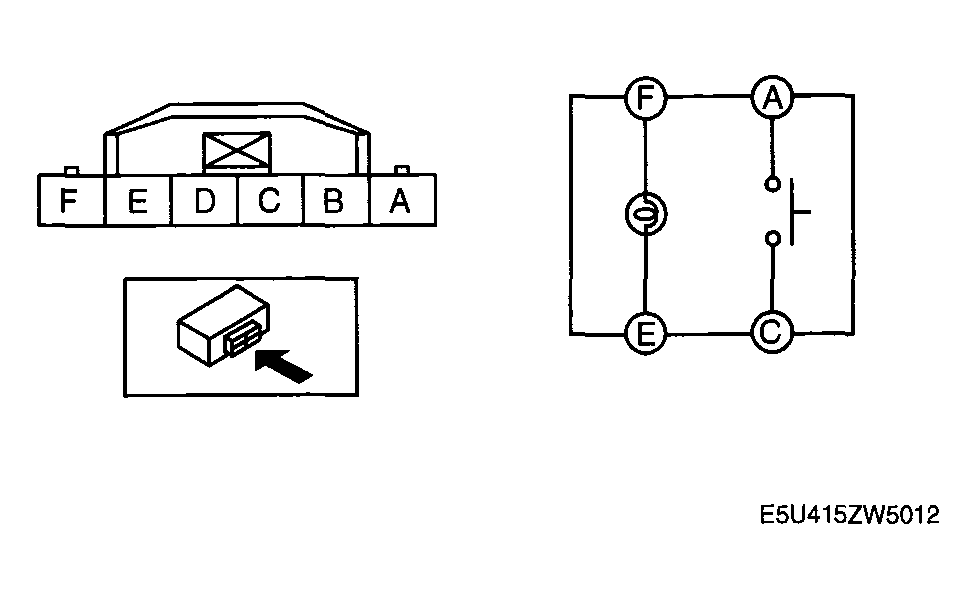

Fig 2: Identifying DSC OFF Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
