Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION  .)
  2. Disconnect the APP sensor connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

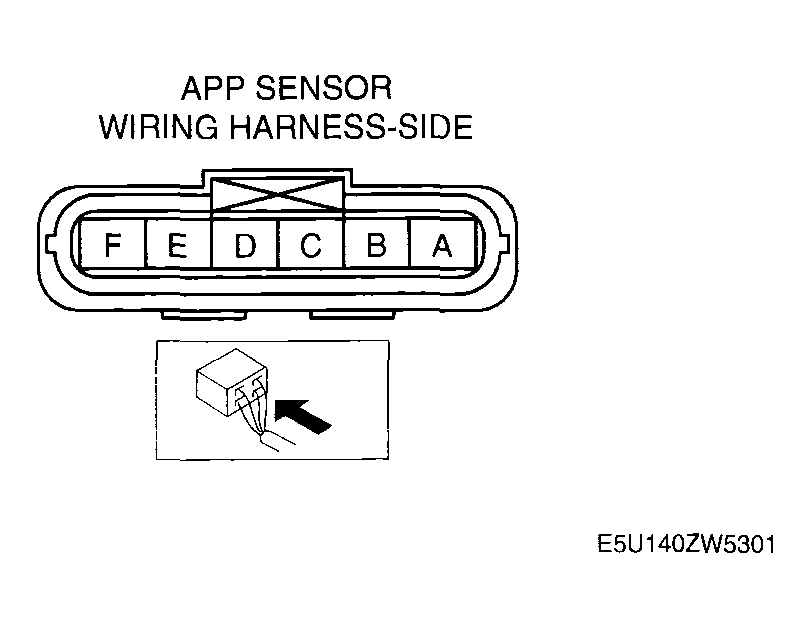

    Fig 1: Identifying APP Sensor Harness Side Connector
    G04323048Courtesy of MAZDA MOTORS CORP.

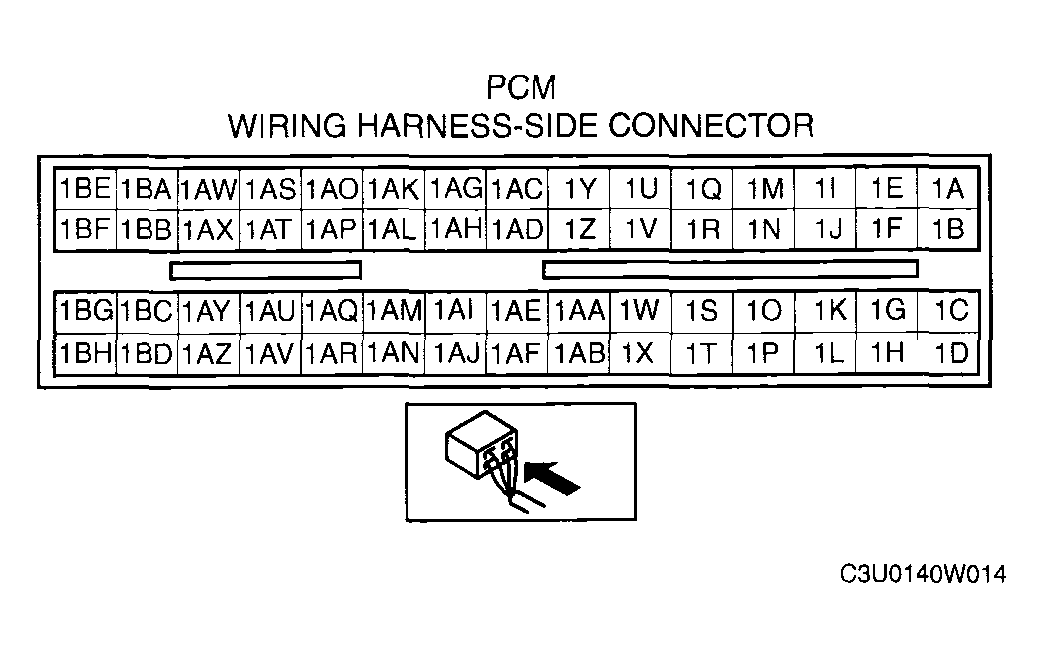

    Fig 2: Identifying PCM Harness Side Connector
    G04323049Courtesy of MAZDA MOTORS CORP.
