Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION  .)
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity Inspection)

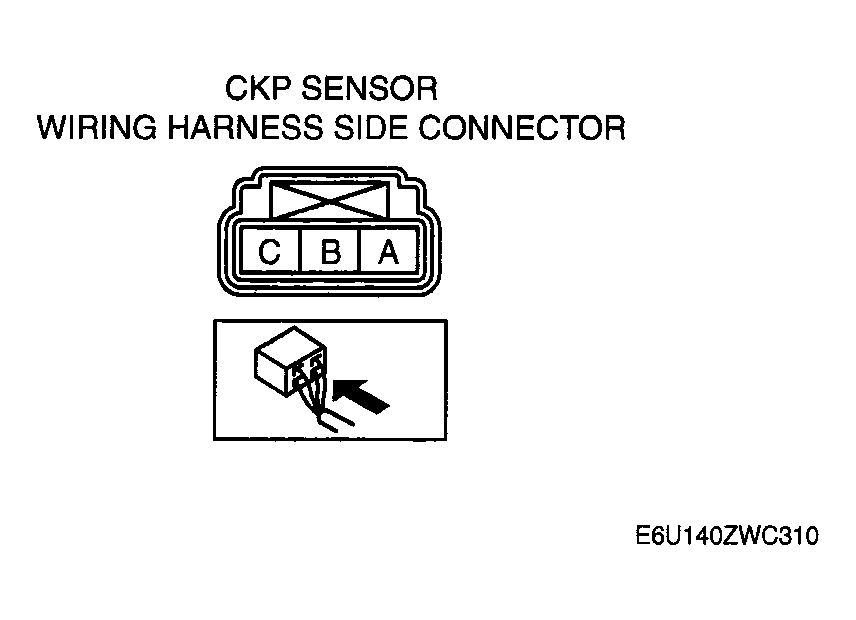

Fig 1: Identifying CKP Sensor Harness Side Connector
G04323034Courtesy of MAZDA MOTORS CORP.

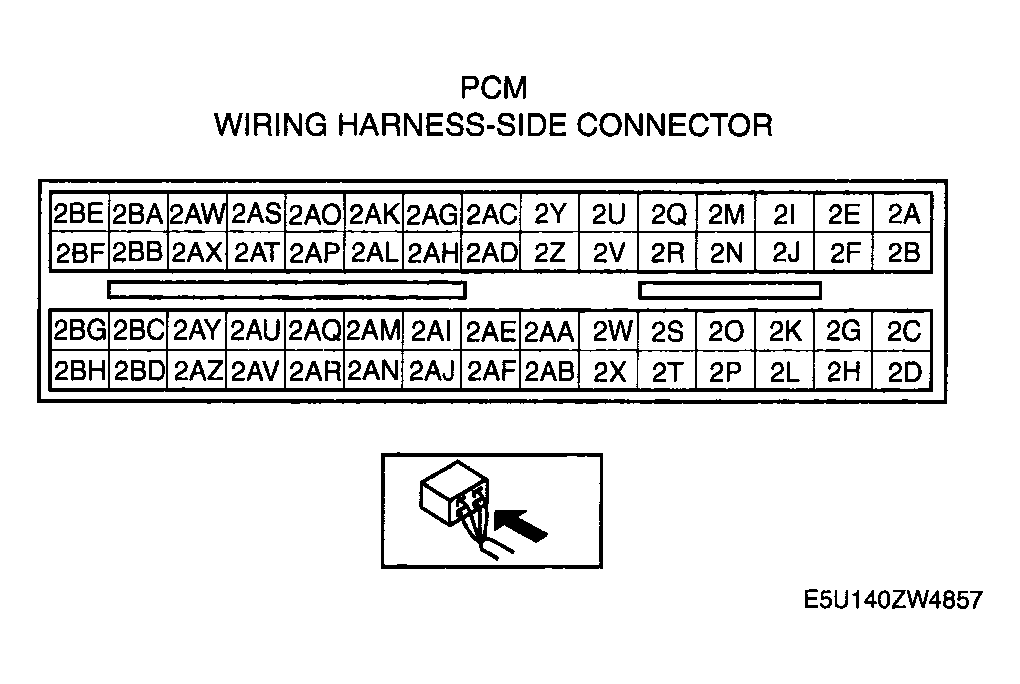

Fig 2: Identifying PCM Harness Side Connector
G04323035Courtesy of MAZDA MOTORS CORP.
