Short Circuit
- If there is continuity, there is a short circuit. Repair or replace the wiring harness.

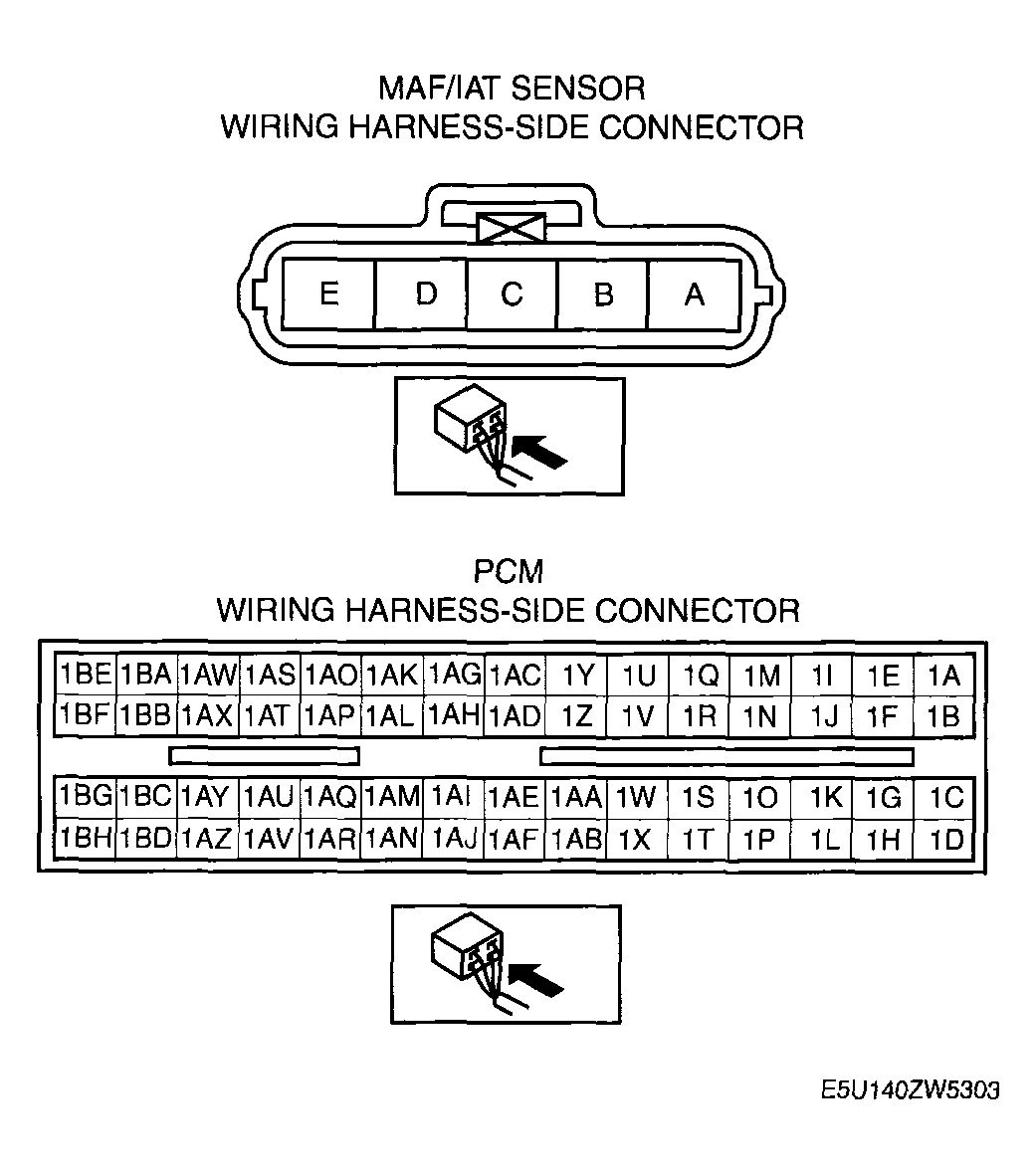

- MAF/IAT sensor terminal A and body ground
- MAF/IAT sensor terminal B and power supply
- MAF/IAT sensor terminal C and power supply
- MAF/IAT sensor terminal C and body ground
INTAKE MAF (G/S) AND ENGINE LOAD CALCULATED VALUE SPECIFICATION
| Condition | Intake MAF (g/s) | Engine load calculated value (%) | |
|---|---|---|---|
| MT | AT | ||
| Idle | 2.1-2.6 | 2.3-2.8 | 13.5-24.0 |
| Engine Speed 2,500 rpm | 6.1-7.5 | 6.7-8.3 | 11.5-21.5 |
