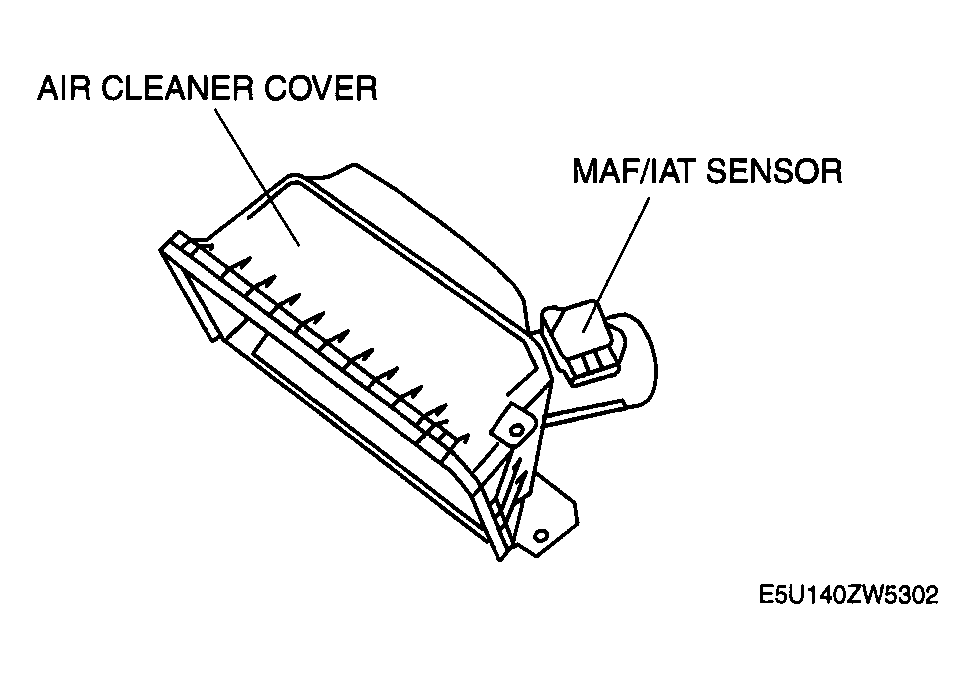

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Disconnect MAF/IAT sensor connector.
- Remove the MAF/IAT sensor.
- Install in the reverse order of removal.
MAF/IAT sensor tightening torque
0.55-0.82 N.m {5.7-8.3 kgf.cm, 4.9-7.2 in.lbf}
