PCM Connector Connected Note

  1. Connect the PCM connector fully into the PCM and push the lever until a click is heard.

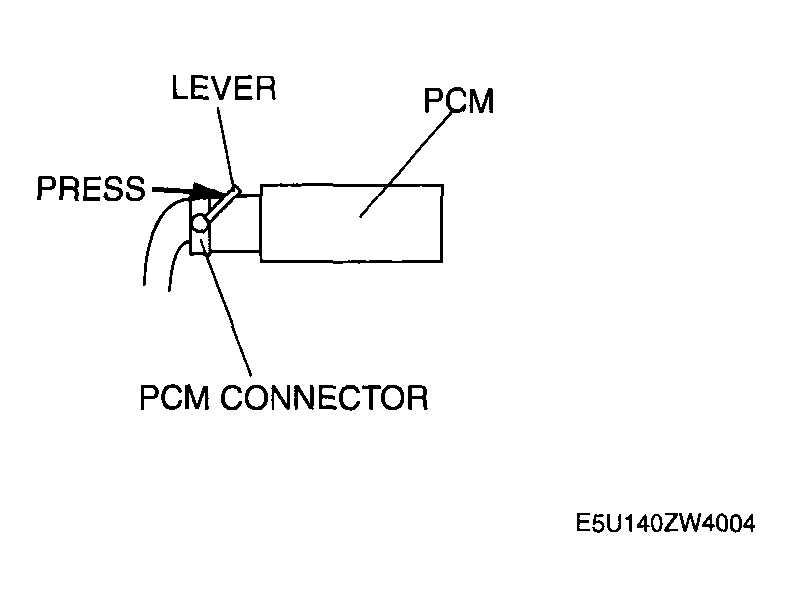

    Fig 1: Connecting PCM Connector Into PCM
    G04323001Courtesy of MAZDA MOTORS CORP.
