Rear HO2S Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Disconnect the rear HO2S connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity Inspection)
    Fig 1: Identifying Rear HO2S Harness Side Connector
    G04323060Courtesy of MAZDA MOTORS CORP.

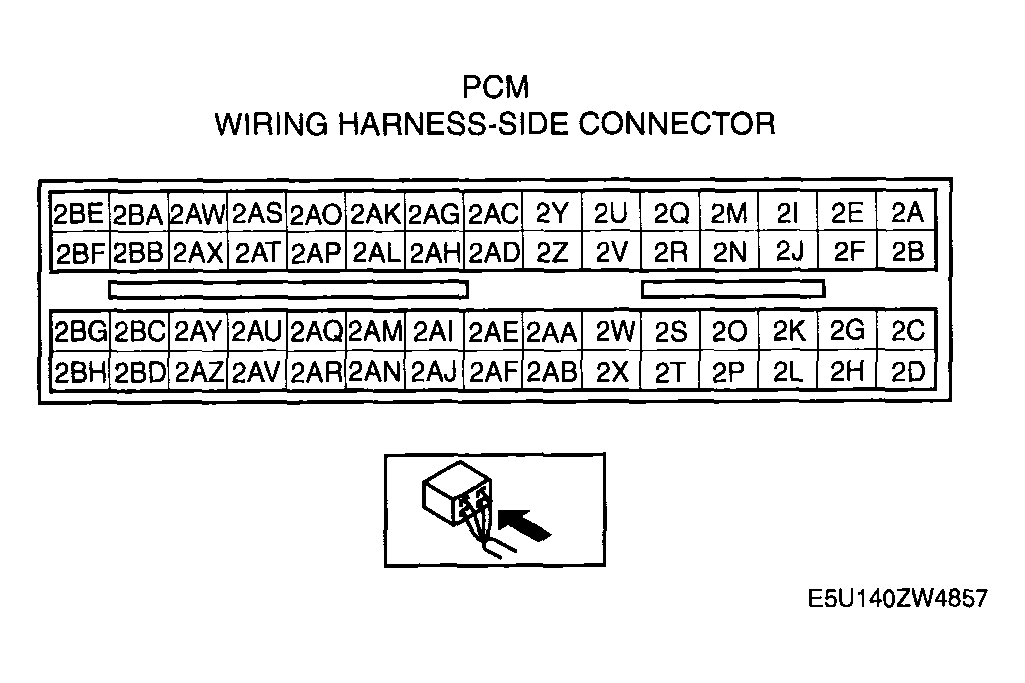

    Fig 2: Identifying PCM Harness Side Connector
    G04323061Courtesy of MAZDA MOTORS CORP.
