Engine Compartment Side

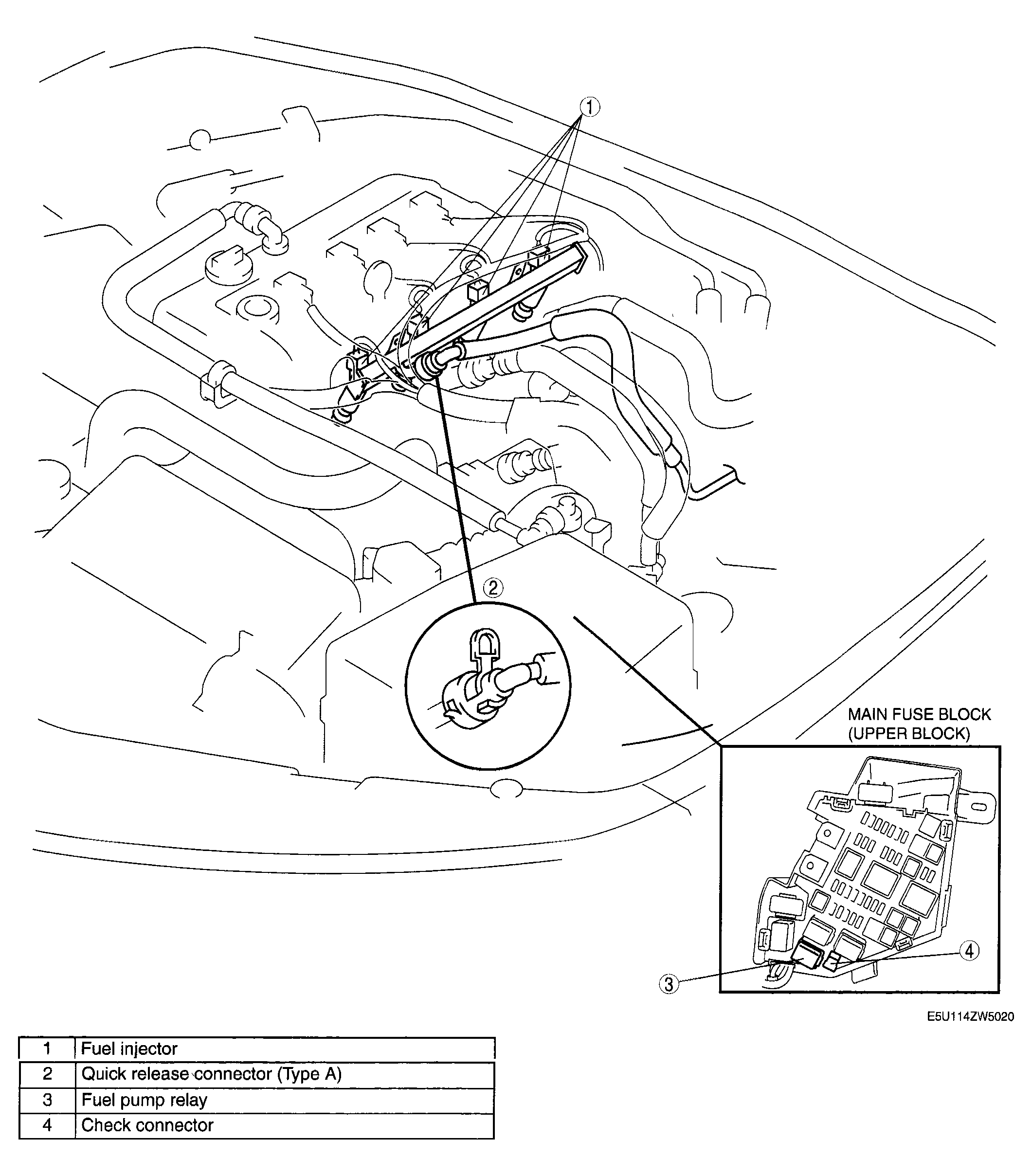

Fig 1: Identifying Location Of Fuel System Components (LF)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
