DTC P0102: Notes
DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0102)
| DTC P0102 |
MAF sensor circuit low input |
| DETECTION CONDITION |
- The PCM monitors input voltage from the MAF sensor when the engine running. If the input voltage is below 0.21 V
, the PCM determines that the MAF circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAF sensor malfunction
- Connector or terminal malfunction

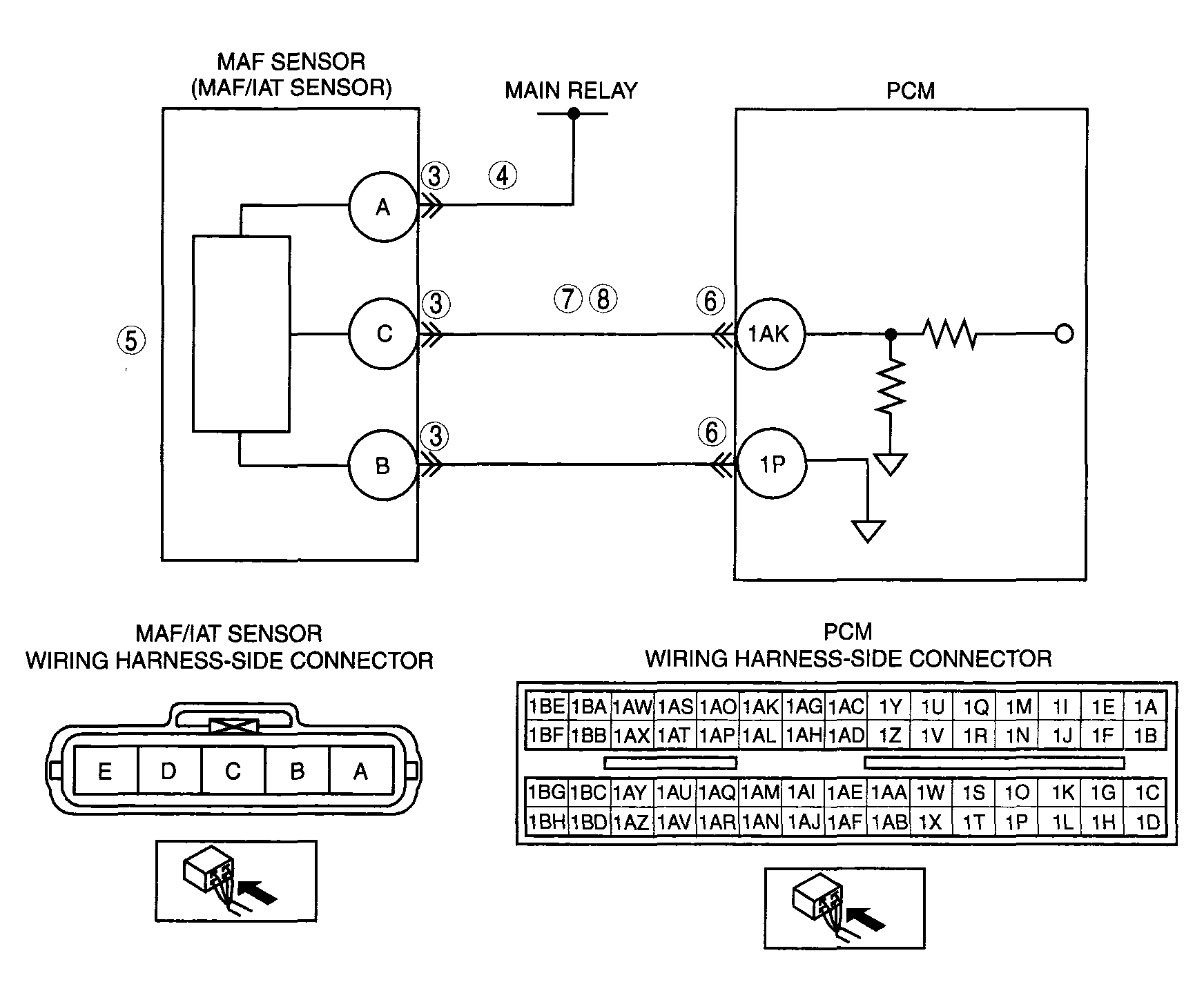

- Short to ground in wiring harness between MAF/IAT sensor terminal C and PCM terminal 1AK
- Open circuit in wiring harness between MAF/IAT sensor terminal C and PCM terminal 1AK
- Open circuit in wiring harness between main relay and MAF/IAT sensor terminal A
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
