DTC P0108: Notes
DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0108)
| DTC P0108 |
MAP sensor circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from the MAP sensor when intake air temperature is above -10°C {14°F}
. If input the voltage is above 4.92 V
, the PCM determines that the MAP sensor circuit has a malfunction.
MONITORING CONDITIONS
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- MAP sensor malfunction
- Connector or terminal malfunction

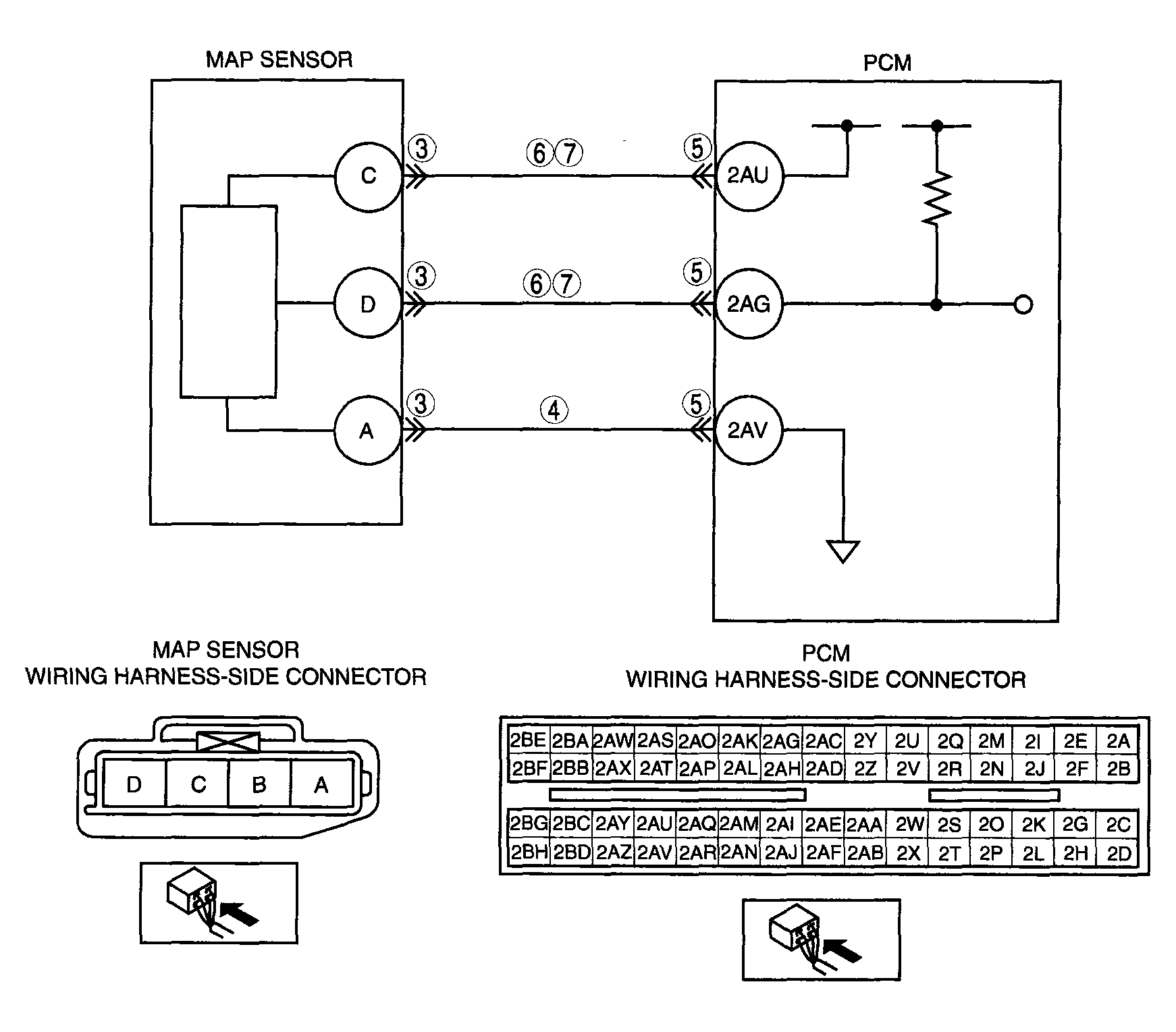

- Open circuit in wiring harness between MAP sensor terminal A and PCM terminal 2AV
- Open circuit in wiring harness between MAP sensor terminal D and PCM terminal 2AG
- MAP sensor signal circuit shorts to constant voltage supply circuit
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
