DTC P0223: Notes
DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0223)
| DTC P0223 |
TP sensor No.2 circuit high input |
| DETECTION CONDITION |
- If the PCM detects the TP sensor No.2 voltage is to be above 4.9 V
after the ignition switch to the ON position, the PCM determines that the TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- TP sensor No.2 malfunction
- Connector or terminal malfunction

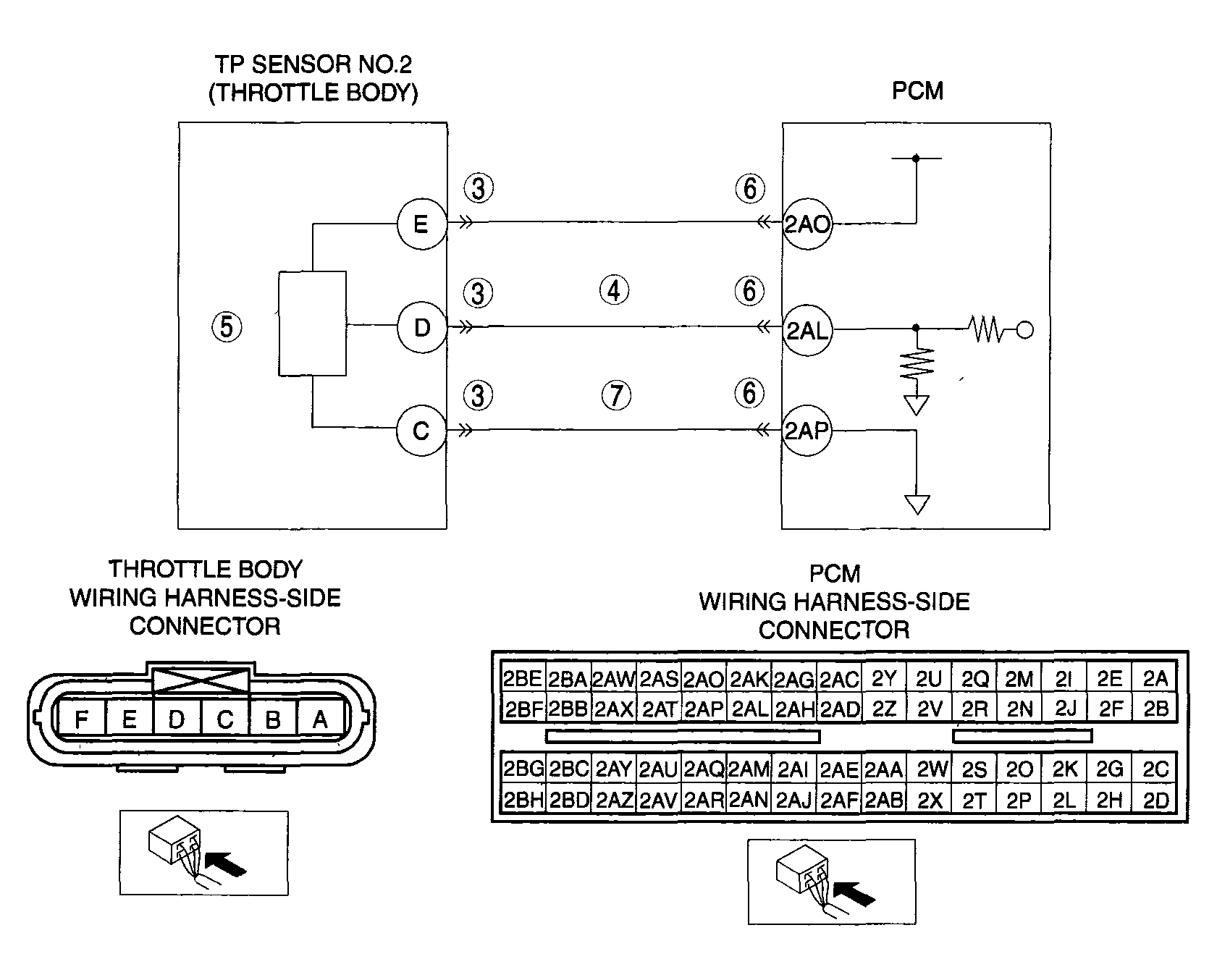

- Short to power supply in wiring harness between throttle body terminal D and PCM terminal 2AL
- Open circuit in wiring harness between throttle body terminal C and PCM terminal 2AP
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
