DTC P0327: Notes
DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0327)
| DTC P0327 |
KS circuit low input |
| DETECTION CONDITION |
- The PCM monitors input signal from the KS when the engine is running. If the input voltage is below 0.01 V
the PCM determines that the KS circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- KS malfunction
- Connector or terminal malfunction

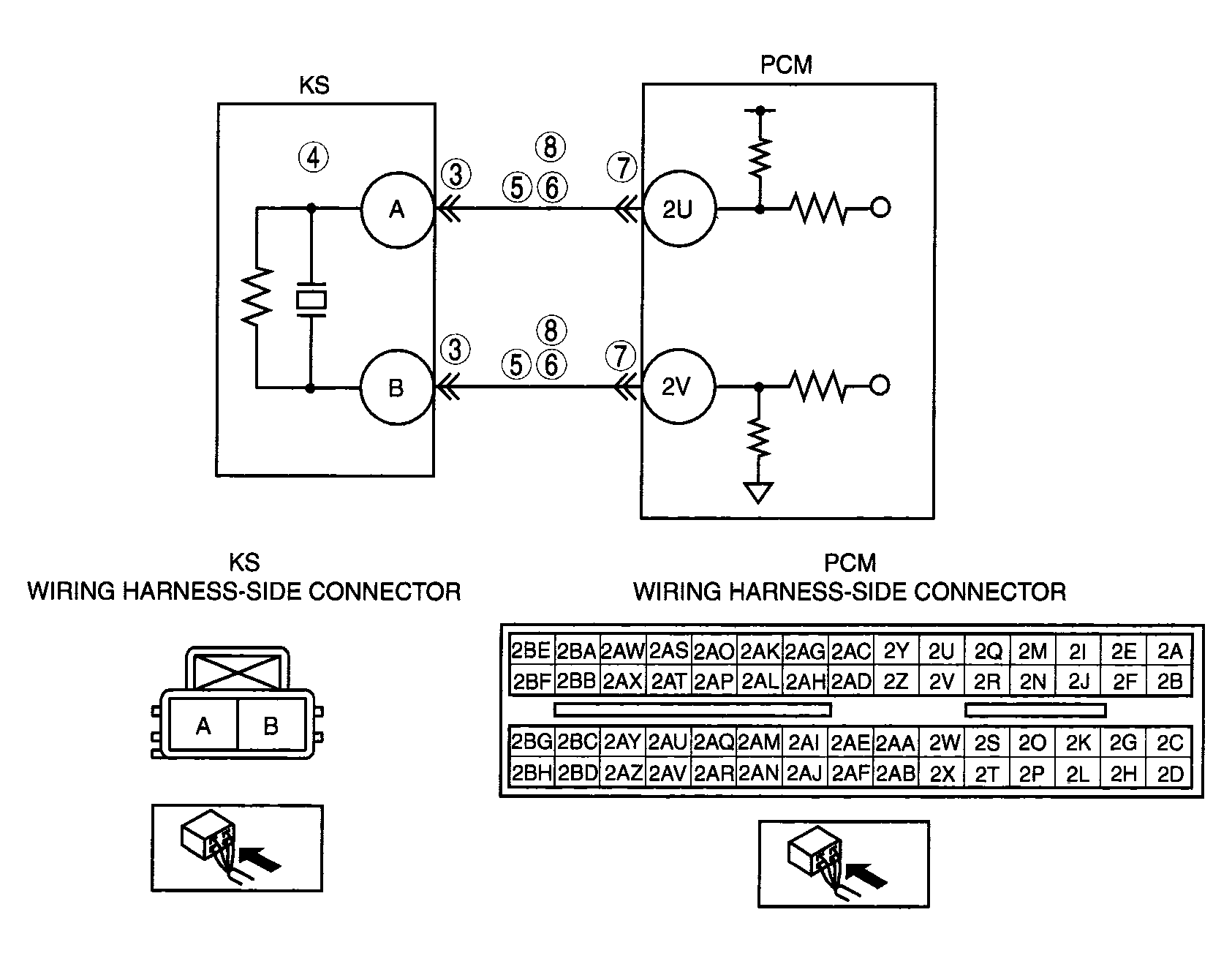

- Open circuit or short to ground in wiring harness between KS terminal A and PCM terminal 2U
- Open circuit or short to ground in wiring harness between KS terminal B and PCM terminal 2V
- Short KS two wires
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
