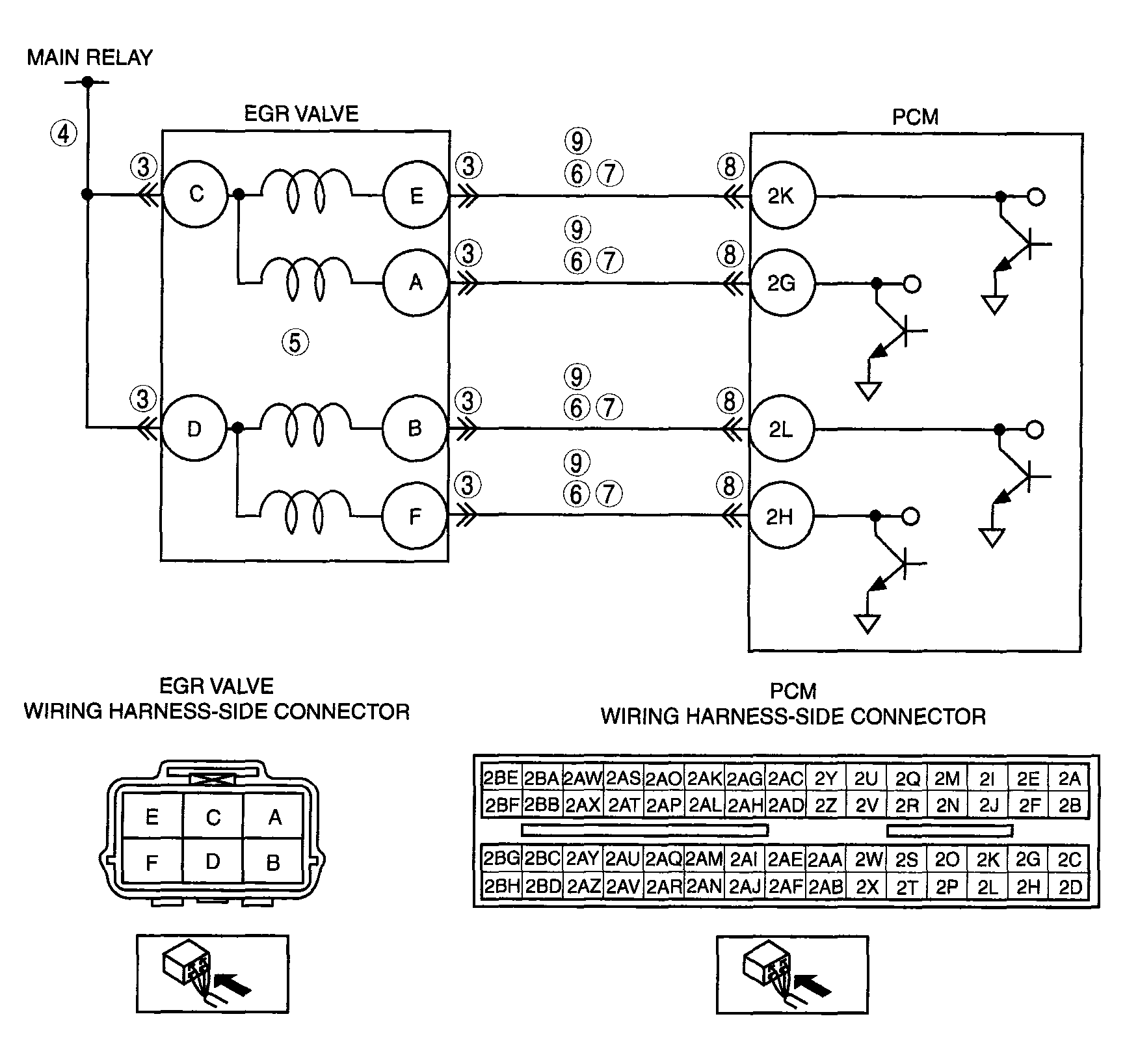

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P0403)

DTC P0403	EGR valve (stepping motor) circuit problem
DETECTION CONDITION	The PCM monitors the EGR valve control signal voltage and current. If the following conditions are met, the PCM determines that there is the EGR control circuit problem. The PCM turns the EGR valve off, but the voltage of the EGR valve control signal remains low. The PCM turns the EGR valve on, but the current of the EGR valve control signal remains high. Diagnostic support note This is a continuous monitor (CCM). The MIL illuminates if the PCM detects the above malfunction conditions in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM. PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA is available. The DTC is stored in the PCM memory.
POSSIBLE CAUSE	EGR valve malfunction Connector or terminal malfunction Short to power supply in wiring harness between EGR valve terminal E and PCM terminal 2K Short to power supply in wiring harness between EGR valve terminal A and PCM terminal 2G Short to power supply in wiring harness between EGR valve terminal B and PCM terminal 2L Short to power supply in wiring harness between EGR valve terminal F and PCM terminal 2H Short to ground circuit in wiring harness between EGR valve terminal E and PCM terminal 2K Short to ground circuit in wiring harness between EGR valve terminal A and PCM terminal 2G Short to ground circuit in wiring harness between EGR valve terminal B and PCM terminal 2L Short to ground circuit in wiring harness between EGR valve terminal F and PCM terminal 2H Open circuit in wiring harness between EGR valve terminal E and PCM terminal 2K Open circuit in wiring harness between EGR valve terminal A and PCM terminal 2G Open circuit in wiring harness between EGR valve terminal B and PCM terminal 2L Open circuit in wiring harness between EGR valve terminal F and PCM terminal 2H Open circuit in wiring harness between main relay and EGR valve terminal C Open circuit in wiring harness between main relay and EGR valve terminal D PCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P0403

EGR valve (stepping motor) circuit problem

DETECTION CONDITION

The PCM monitors the EGR valve control signal voltage and current. If the following conditions are met, the PCM determines that there is the EGR control circuit problem.
- The PCM turns the EGR valve off, but the voltage of the EGR valve control signal remains low.
- The PCM turns the EGR valve on, but the current of the EGR valve control signal remains high.

Diagnostic support note

This is a continuous monitor (CCM).
The MIL illuminates if the PCM detects the above malfunction conditions in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
FREEZE FRAME DATA is available.
The DTC is stored in the PCM memory.

POSSIBLE CAUSE

EGR valve malfunction
Connector or terminal malfunction
Short to power supply in wiring harness between EGR valve terminal E and PCM terminal 2K
Short to power supply in wiring harness between EGR valve terminal A and PCM terminal 2G
Short to power supply in wiring harness between EGR valve terminal B and PCM terminal 2L
Short to power supply in wiring harness between EGR valve terminal F and PCM terminal 2H
Short to ground circuit in wiring harness between EGR valve terminal E and PCM terminal 2K
Short to ground circuit in wiring harness between EGR valve terminal A and PCM terminal 2G
Short to ground circuit in wiring harness between EGR valve terminal B and PCM terminal 2L
Short to ground circuit in wiring harness between EGR valve terminal F and PCM terminal 2H
Open circuit in wiring harness between EGR valve terminal E and PCM terminal 2K
Open circuit in wiring harness between EGR valve terminal A and PCM terminal 2G
Open circuit in wiring harness between EGR valve terminal B and PCM terminal 2L
Open circuit in wiring harness between EGR valve terminal F and PCM terminal 2H
Open circuit in wiring harness between main relay and EGR valve terminal C
Open circuit in wiring harness between main relay and EGR valve terminal D
PCM malfunction

Courtesy of MAZDA MOTORS CORP.
