DTC P2504: Notes
DETECTION CONDITION AND POSSIBLE CAUSE (DTC P2504)
| DTC P2504 |
Charging system voltage high |
| DETECTION CONDITION |
- PCM judges generator output voltage is above 18.5 V
or battery voltage is above 16.0 V
during engine running.
Diagnostic support note
- This is a continuous monitor (Other).
- The MIL does not illuminate.
- PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |

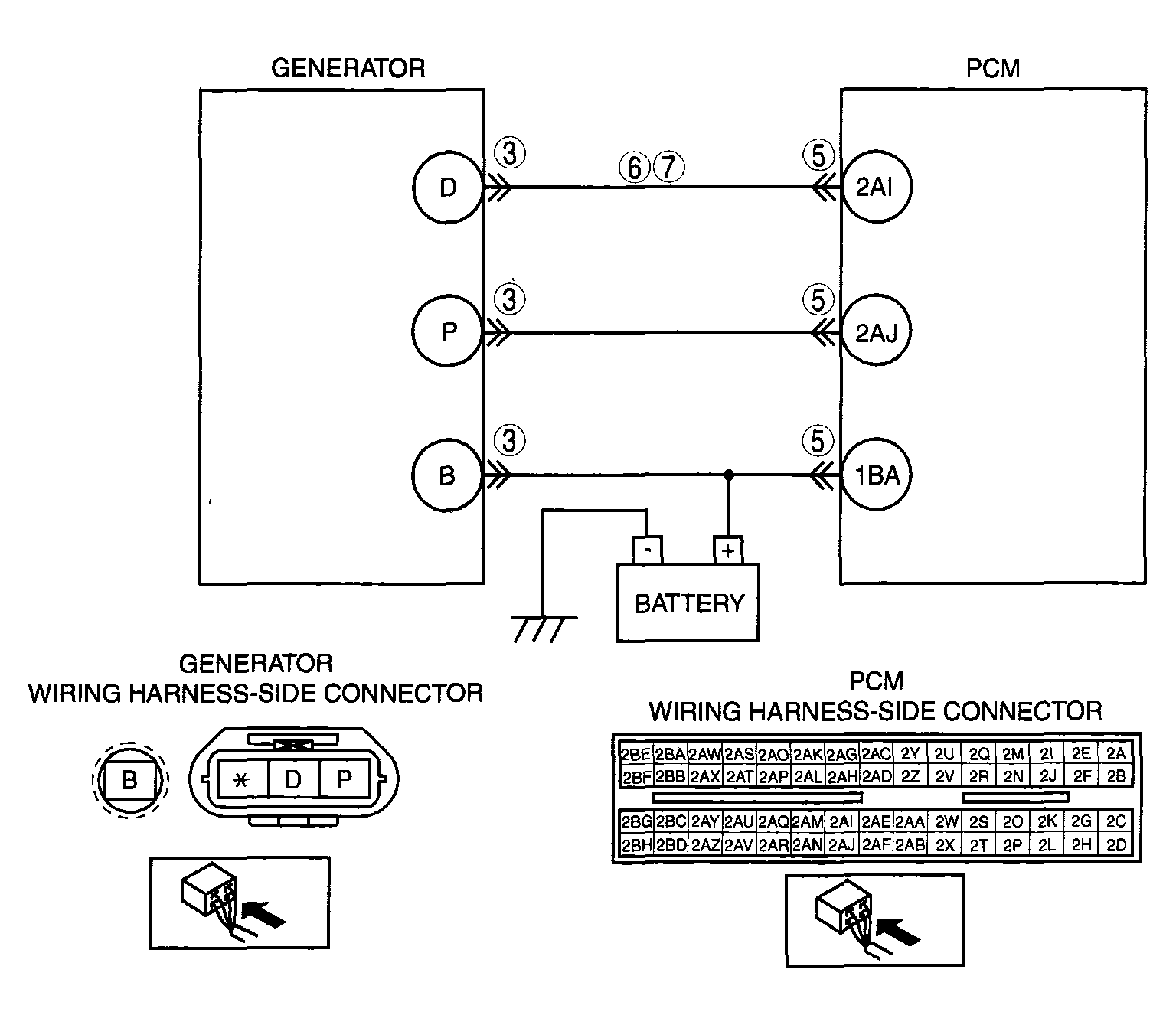

- Short to power circuit between generator connector terminal D and PCM connector terminal 2AI
- Generator malfunction
- PCM and/or generator are poorly connected
|
 Courtesy of MAZDA MOTORS CORP.
|
