DTC P2507: Notes
DETECTION CONDITION AND POSSIBLE CAUSE (DTC P2507)
| DTC P2507 |
PCM B+ voltage low |
| DETECTION CONDITION |
- The PCM monitors the voltage of back-up battery positive terminal. If the PCM detects battery positive terminal voltage below 2.5 V
for 2 s
, the PCM determines that the backup voltage circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |

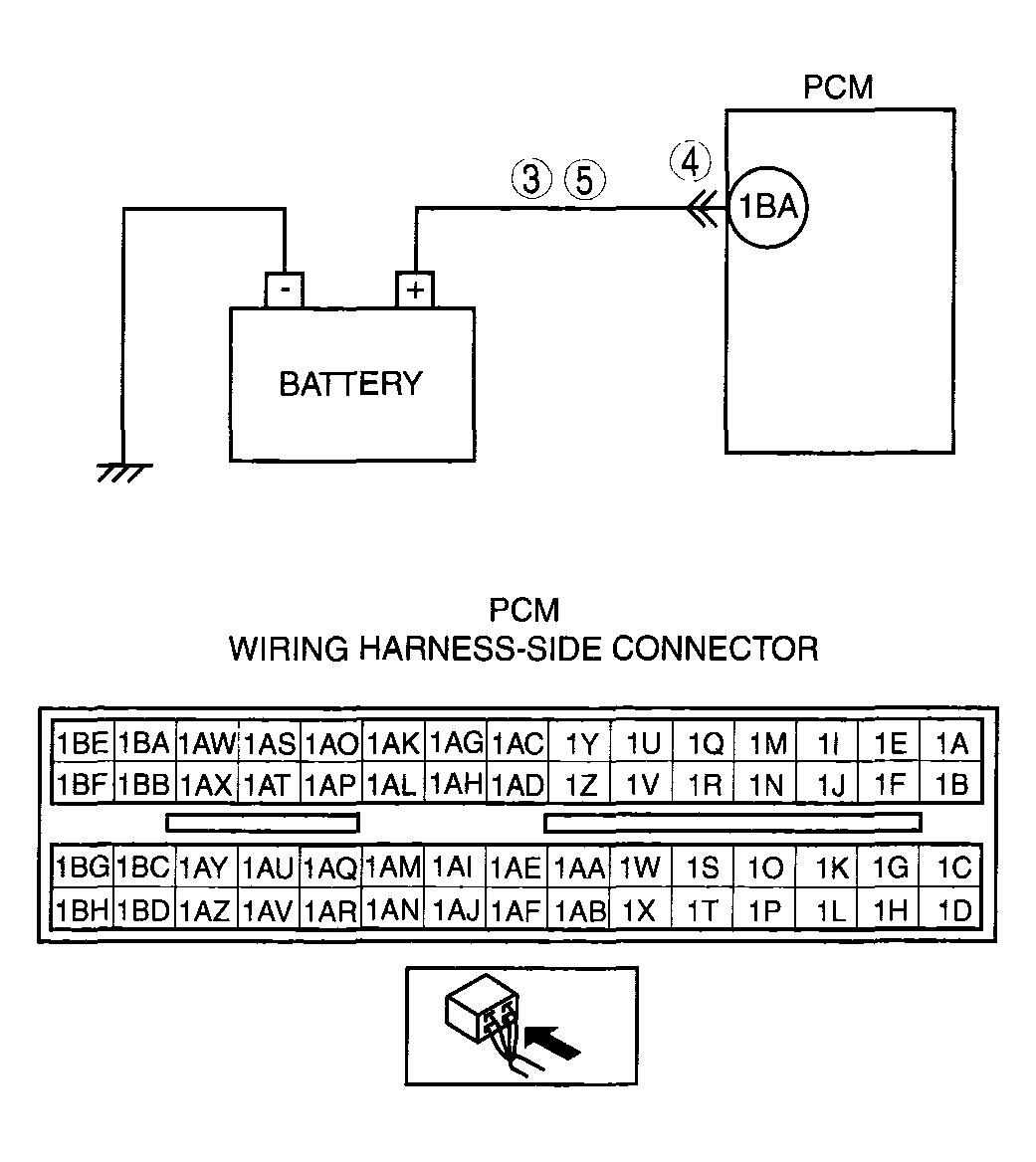

- Open circuit in wiring between battery positive terminal and PCM terminal 1BA
- Short to ground in wiring harness between battery positive terminal and PCM terminal 1 BA
- Poor connection of PCM connector
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
