Monitoring System And Control System Device Relationship Table

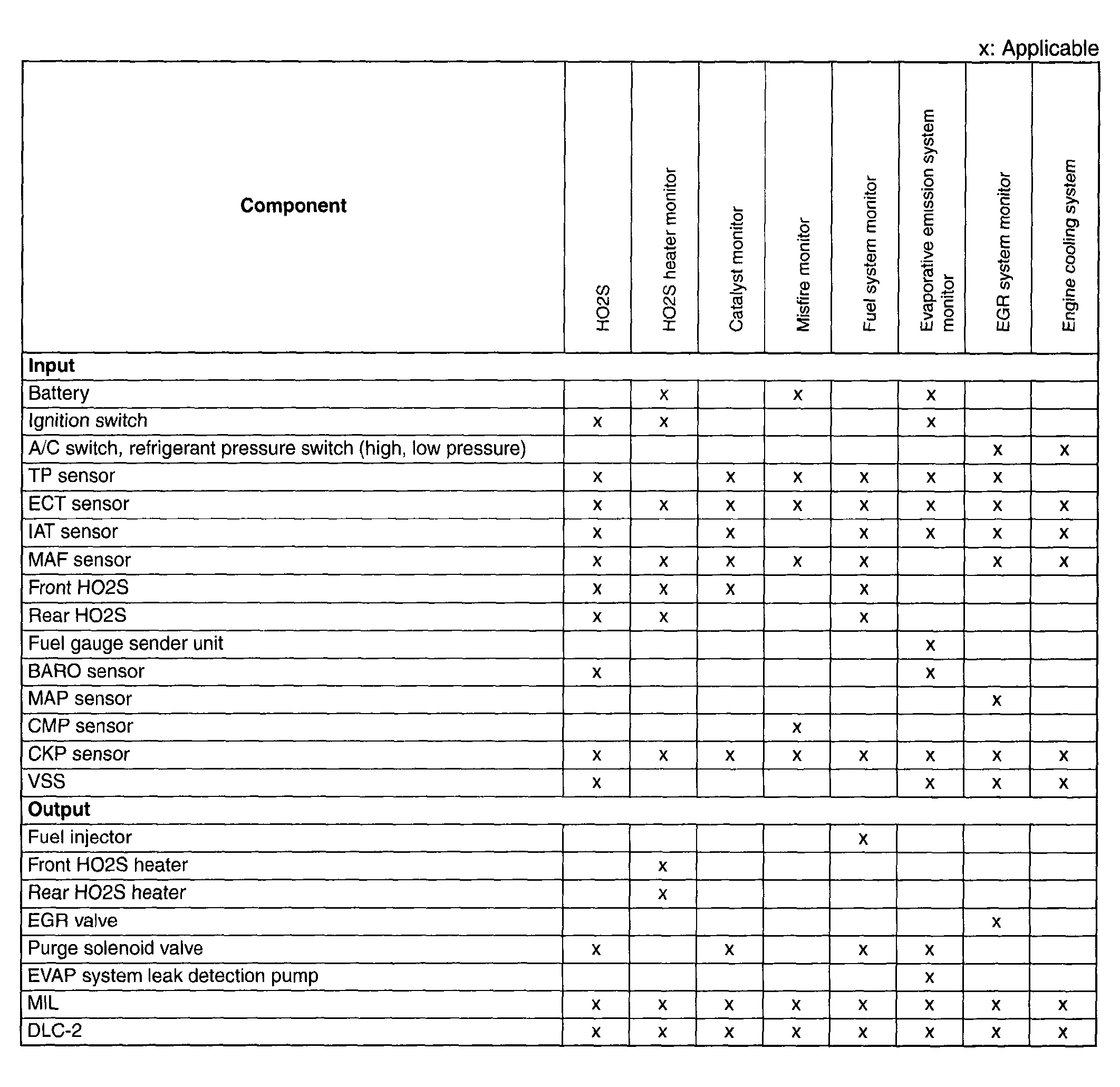

Fig 1: Monitoring System & Control System Device Relationship Table [LF]
G04317681Courtesy of MAZDA MOTORS CORP.
