On-Board Diagnostic Wiring Diagram

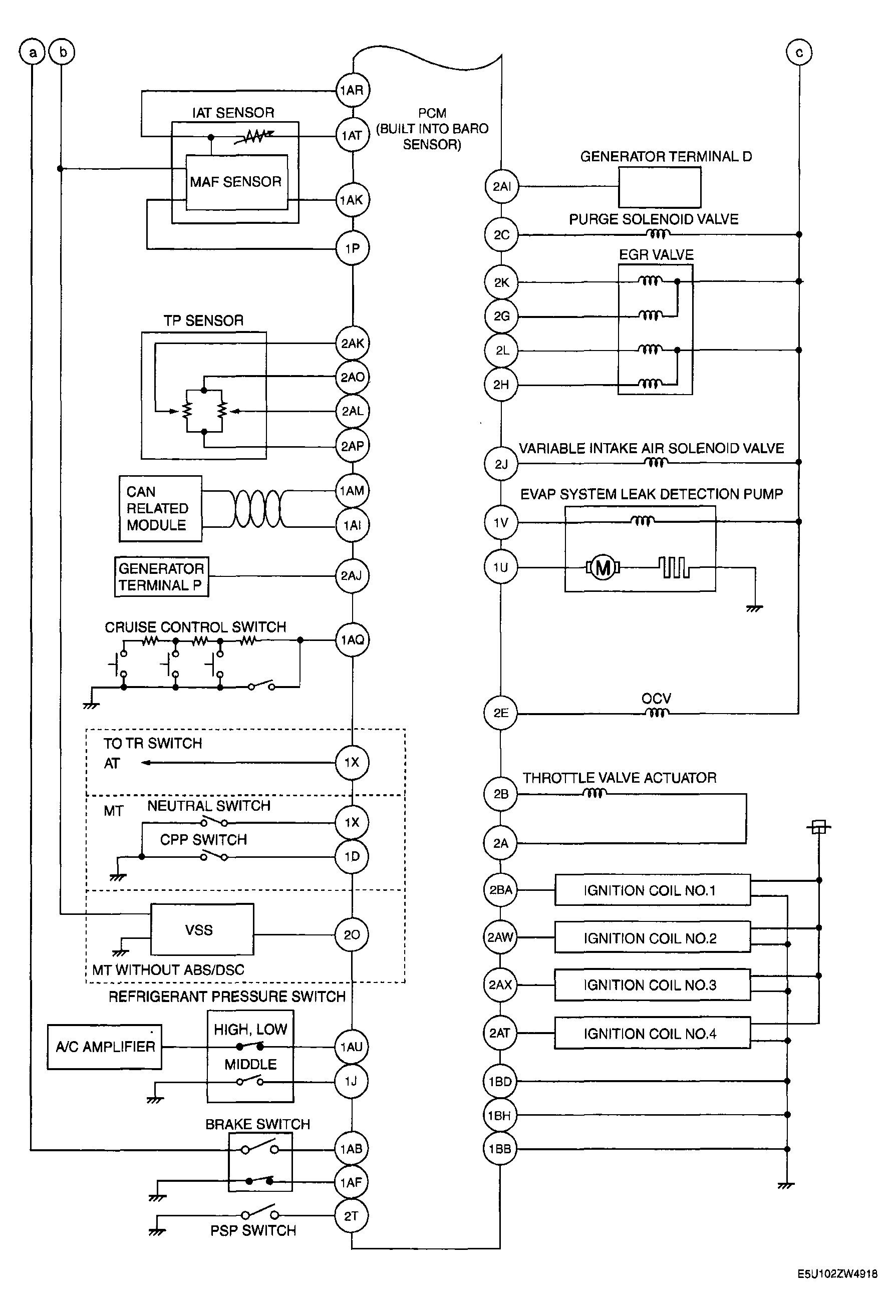

Fig 1: Engine Diagnostic Wiring Diagram [LF] (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

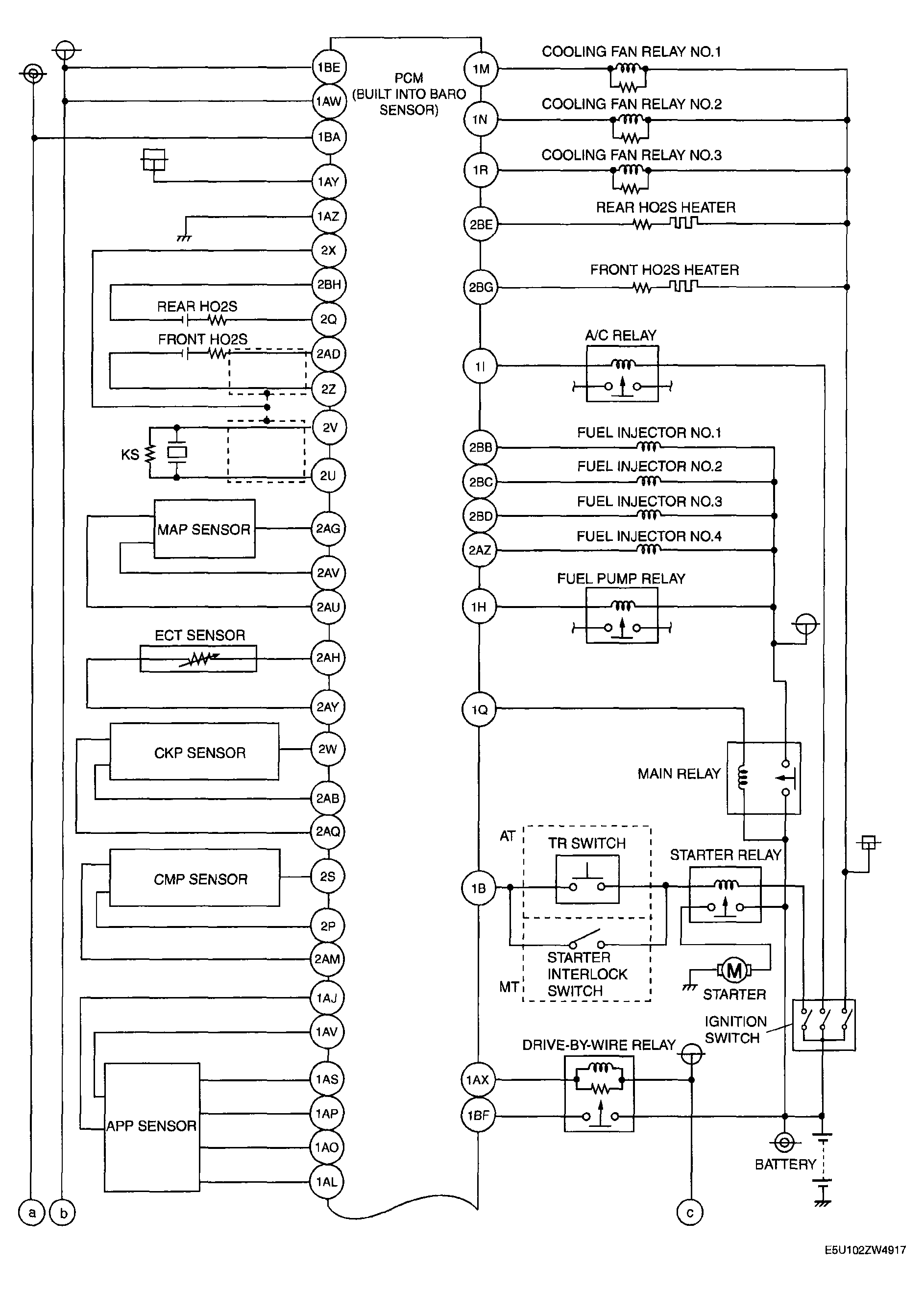

Fig 2: Engine Diagnostic Wiring Diagram [LF] (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
