Quick Diagnostic Table

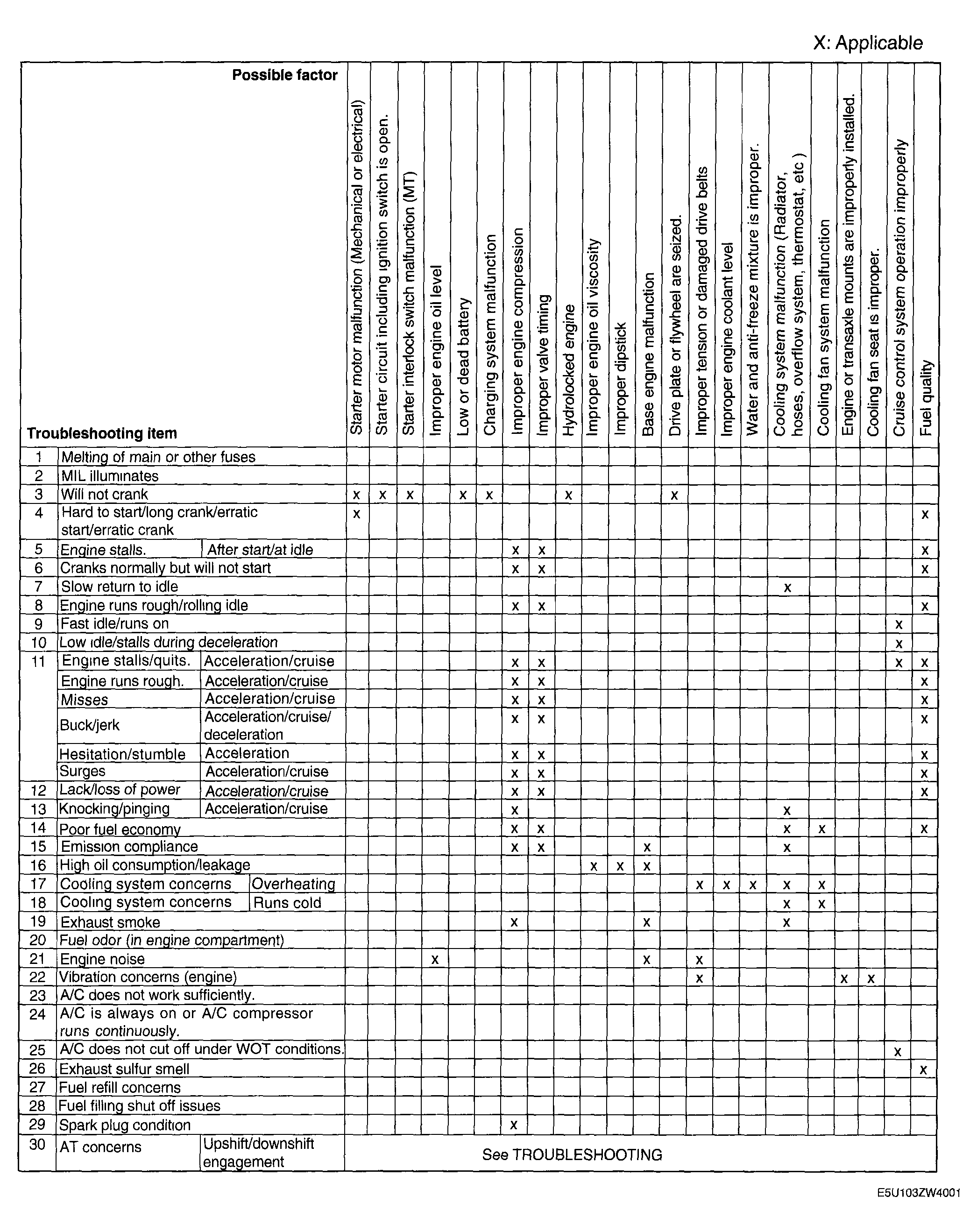

Fig 1: Quick Diagnostic Table (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

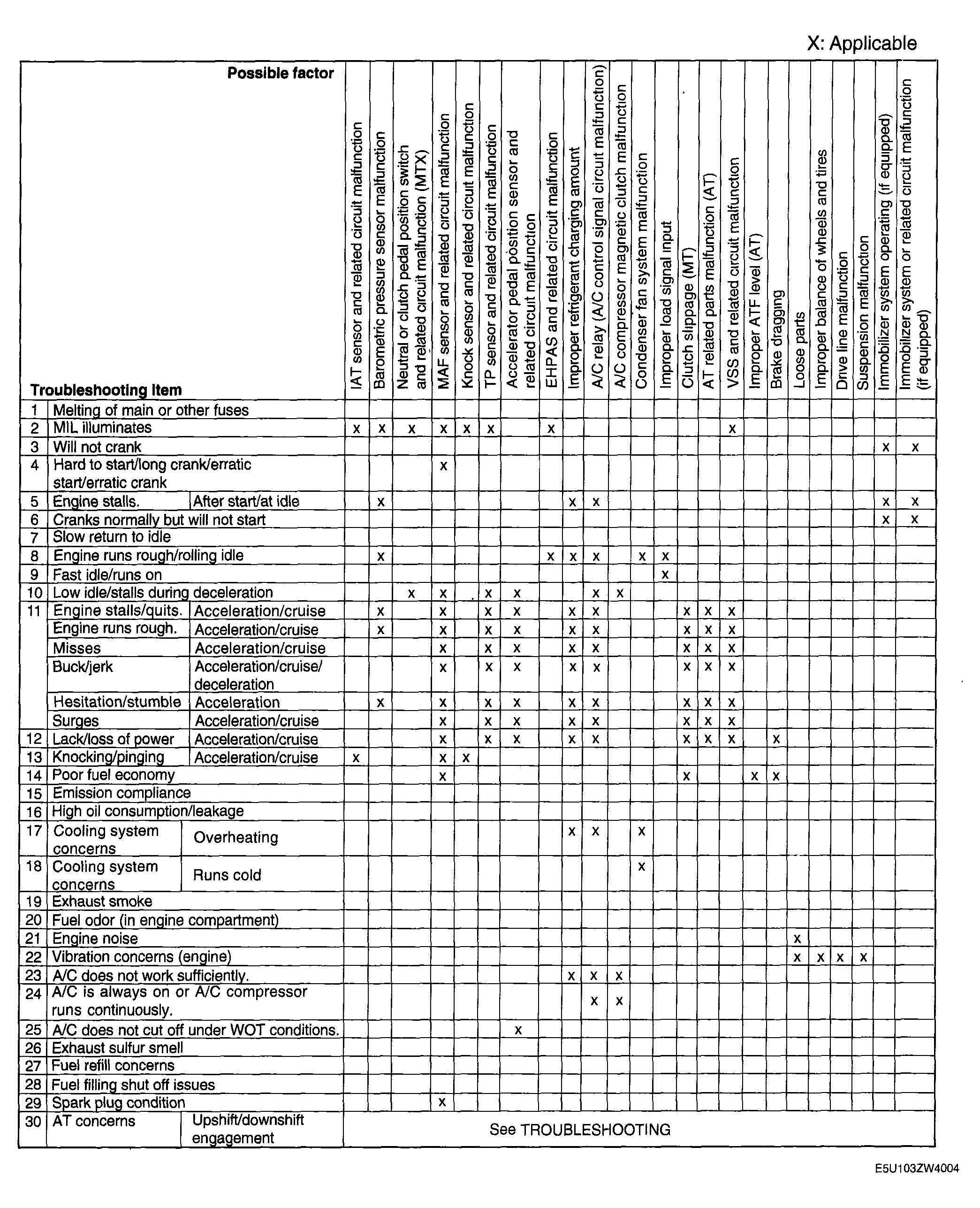

Fig 2: Quick Diagnostic Table (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

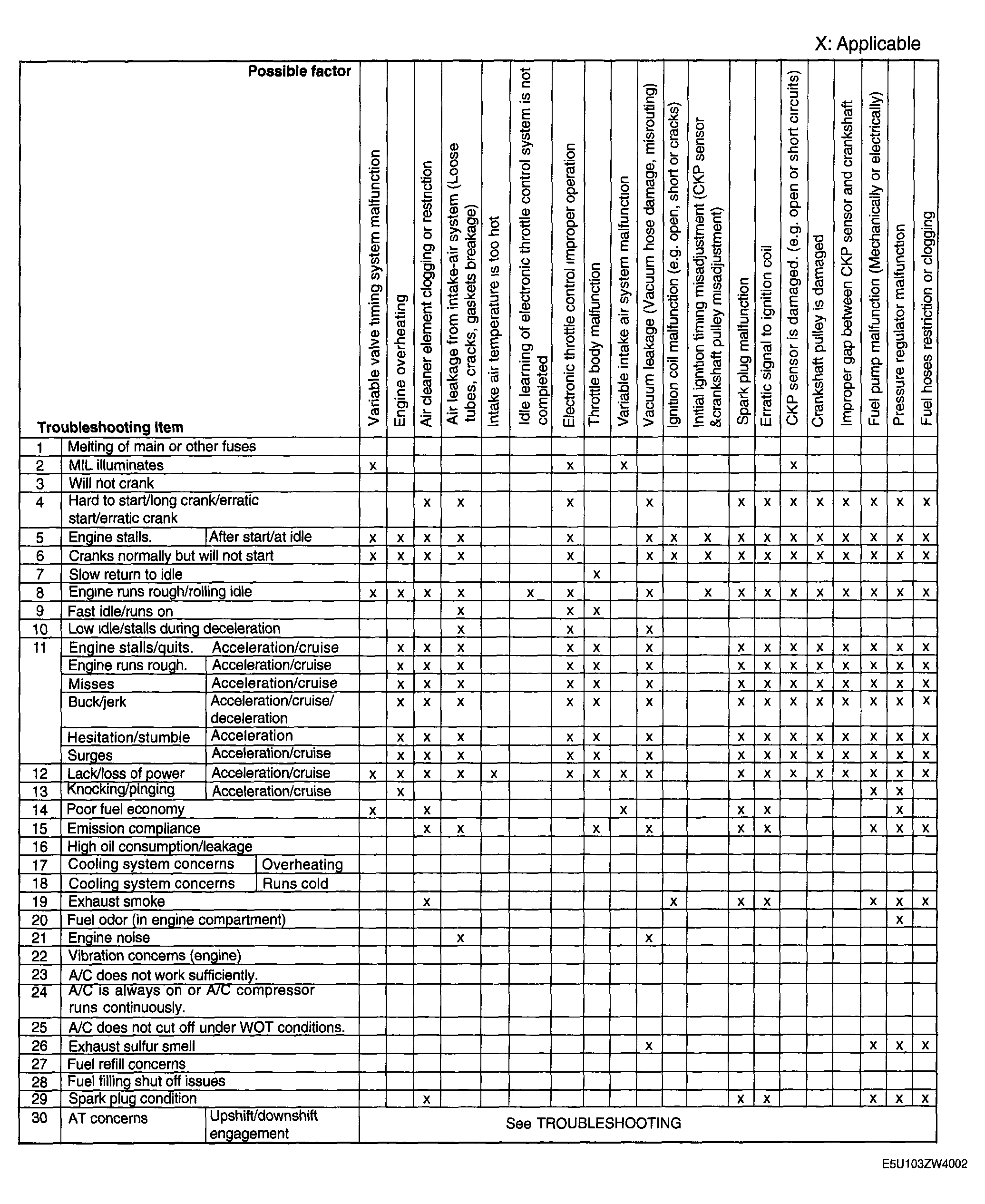

Fig 3: Quick Diagnostic Table (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

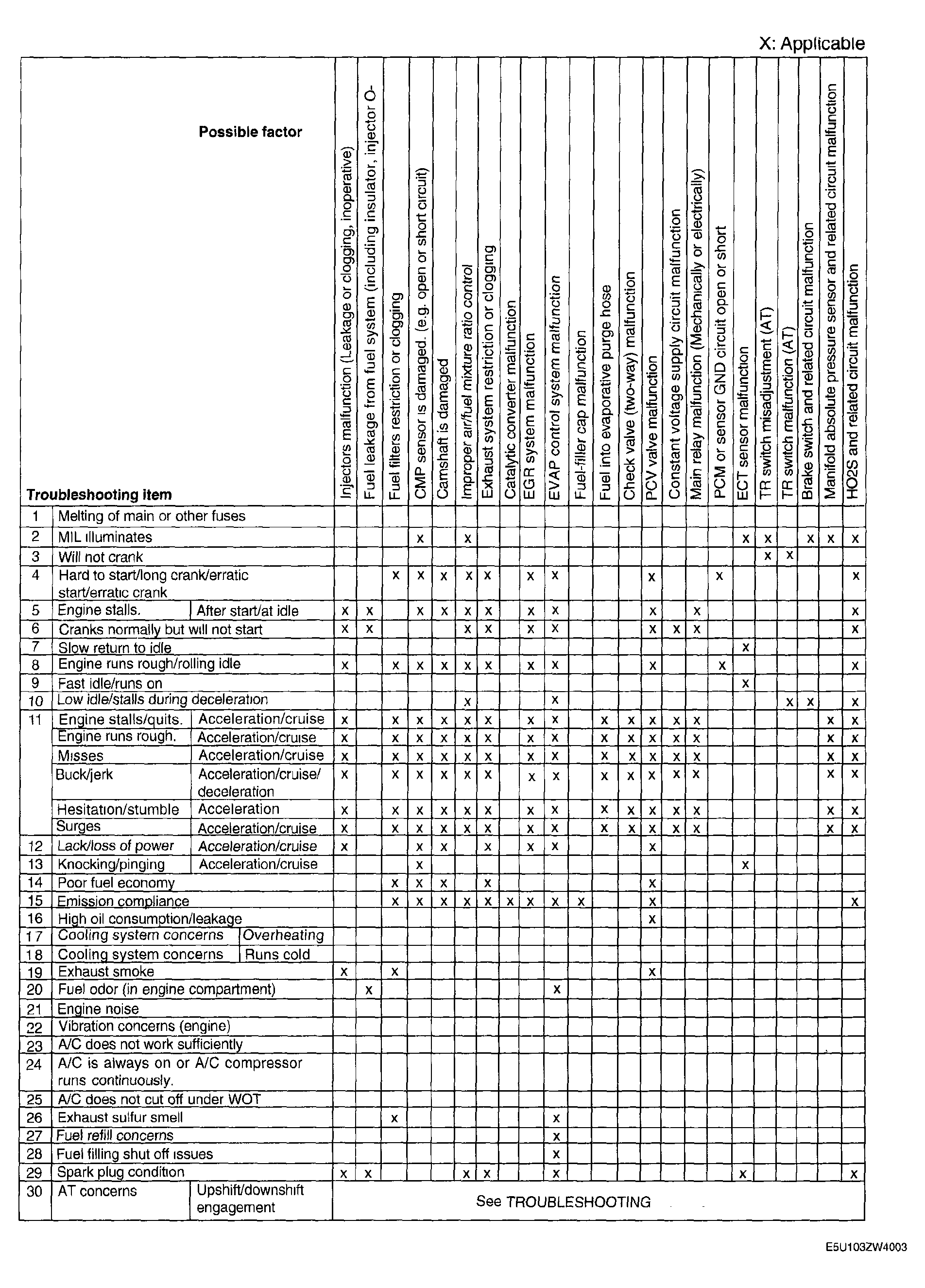

Fig 4: Quick Diagnostic Table (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
