Crankshaft Position (CKP) Sensor - 2.3L: Removal

With the vehicle in NEUTRAL, position on a hoist. See LIFTING .
Disconnect the negative battery cable. See BATTERY DISCONNECT .

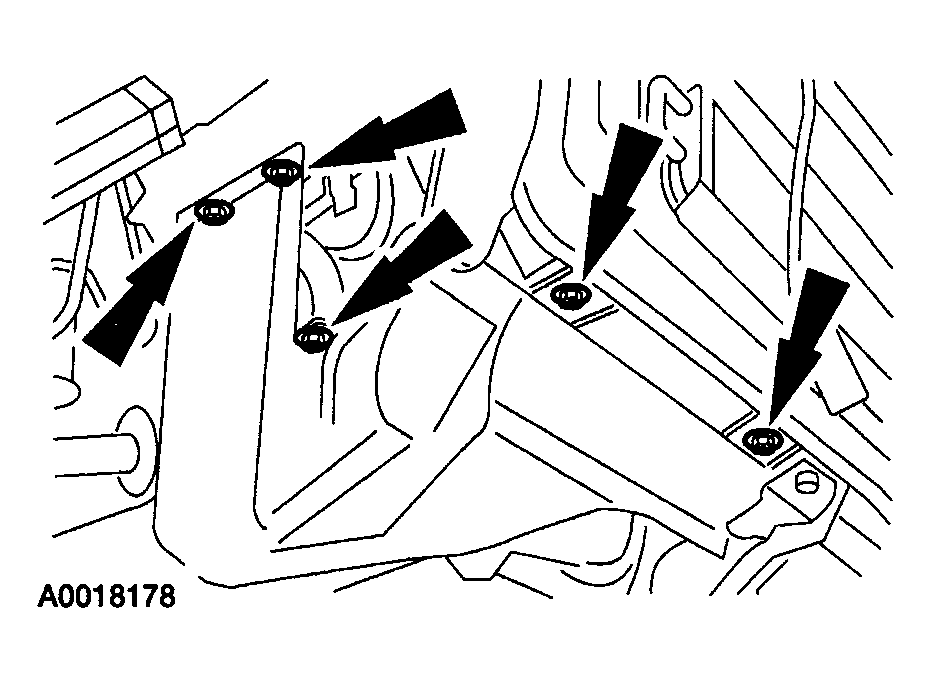

Fig 1: Removing Five Bolts And RH Splash Shield
Courtesy of MAZDA MOTORS CORP.
Remove the five bolts and the RH splash shield.

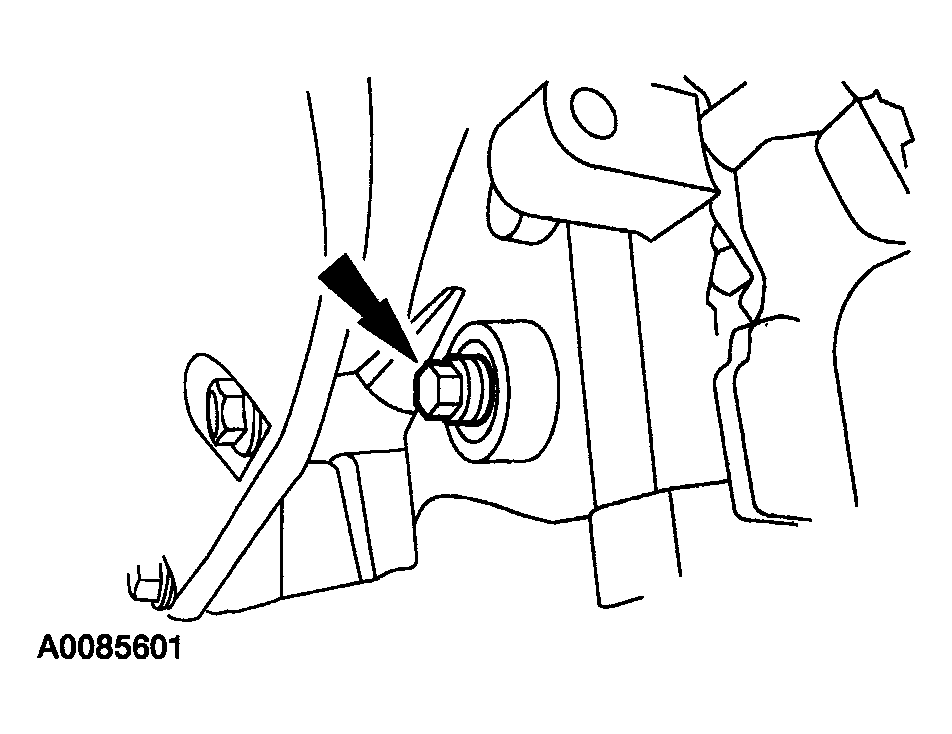

Fig 2: Removing Plug
Courtesy of MAZDA MOTORS CORP.
Remove the plug.

Fig 3: Installing Crankshaft Timing Peg SST
Courtesy of MAZDA MOTORS CORP.
Turn the crankshaft pulley bolt to position the number one cylinder at top dead center and install the crankshaft timing peg SST .
Disconnect the CKP electrical connector.
Remove the CKP sensor bolts and the CKP sensor.
