Cylinder Head Temperature (CHT) Sensor - 2.3L: Notes

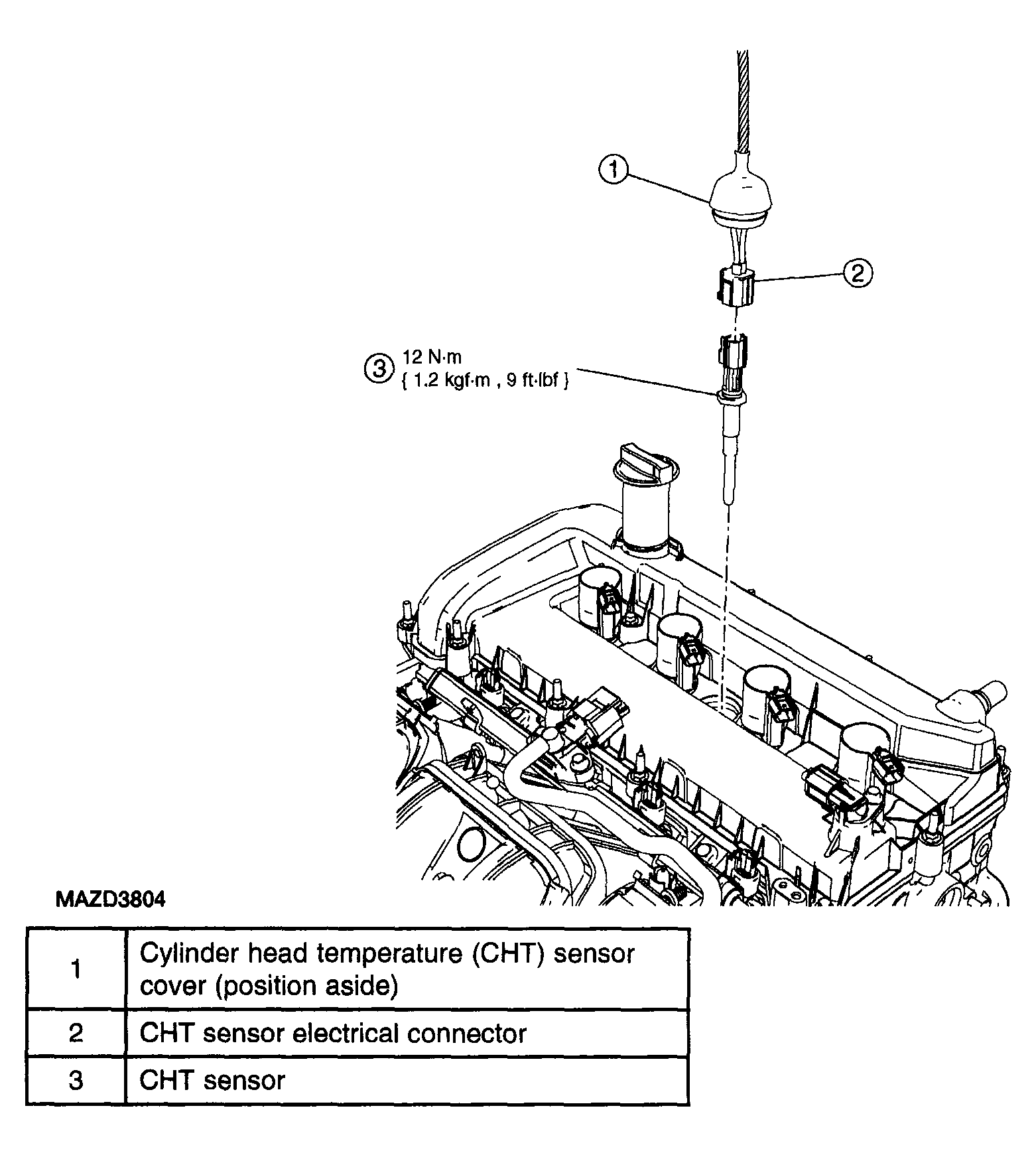

Fig 1: Removing/Installing Cylinder Head Temperature (CHT) Sensor With Torque Specifications - 2.3L
G04320327Courtesy of MAZDA MOTORS CORP.
