Engine Coolant Temperature (Etc) Sensor - 3.0L (4V): Notes

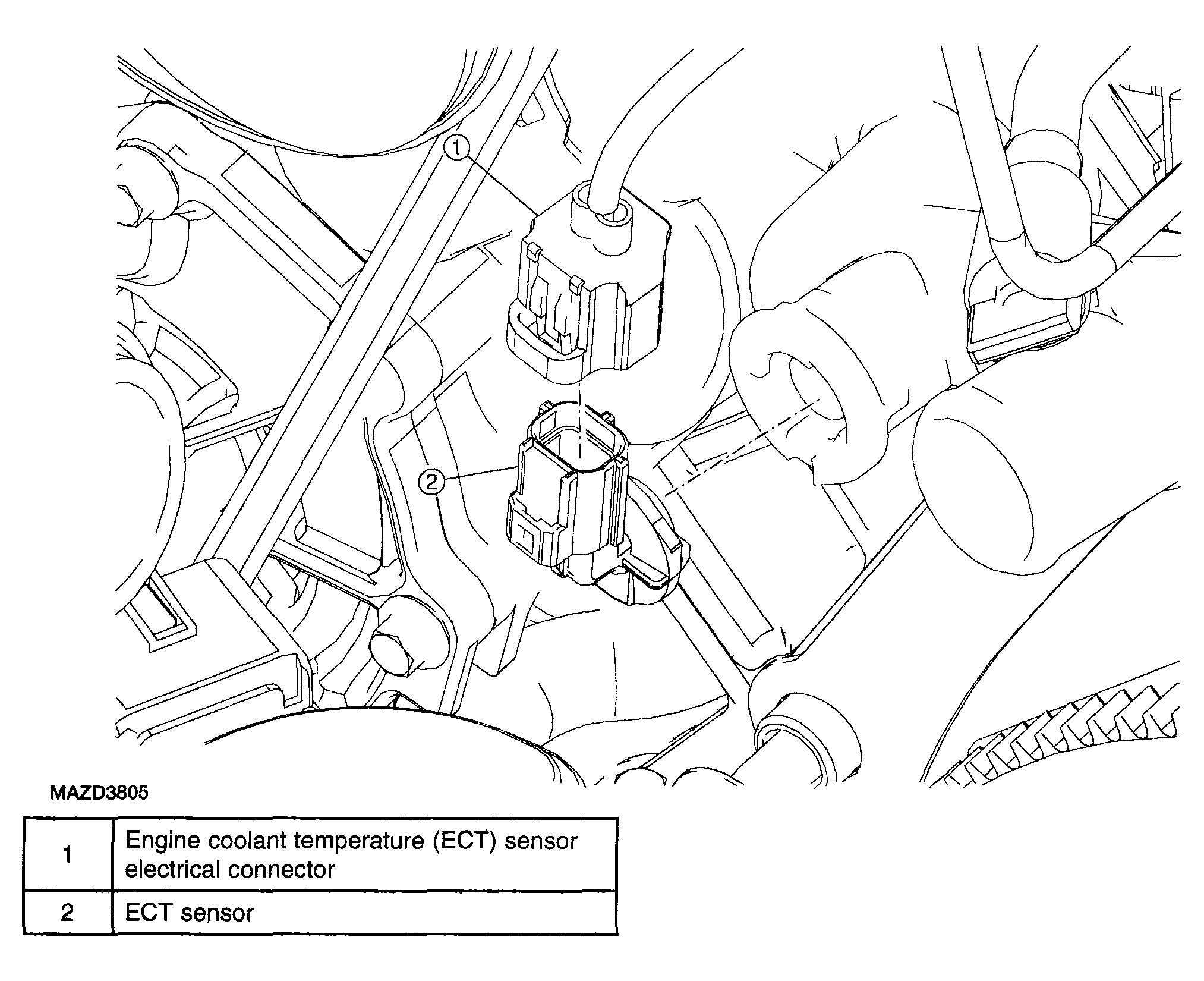

Fig 1: Removing/Installing Engine Coolant Temperature (ETC) Sensor - 3.0L (4V)
G04320328Courtesy of MAZDA MOTORS CORP.
