Mass Air Flow (MAF) Sensor - 2.3L: Notes

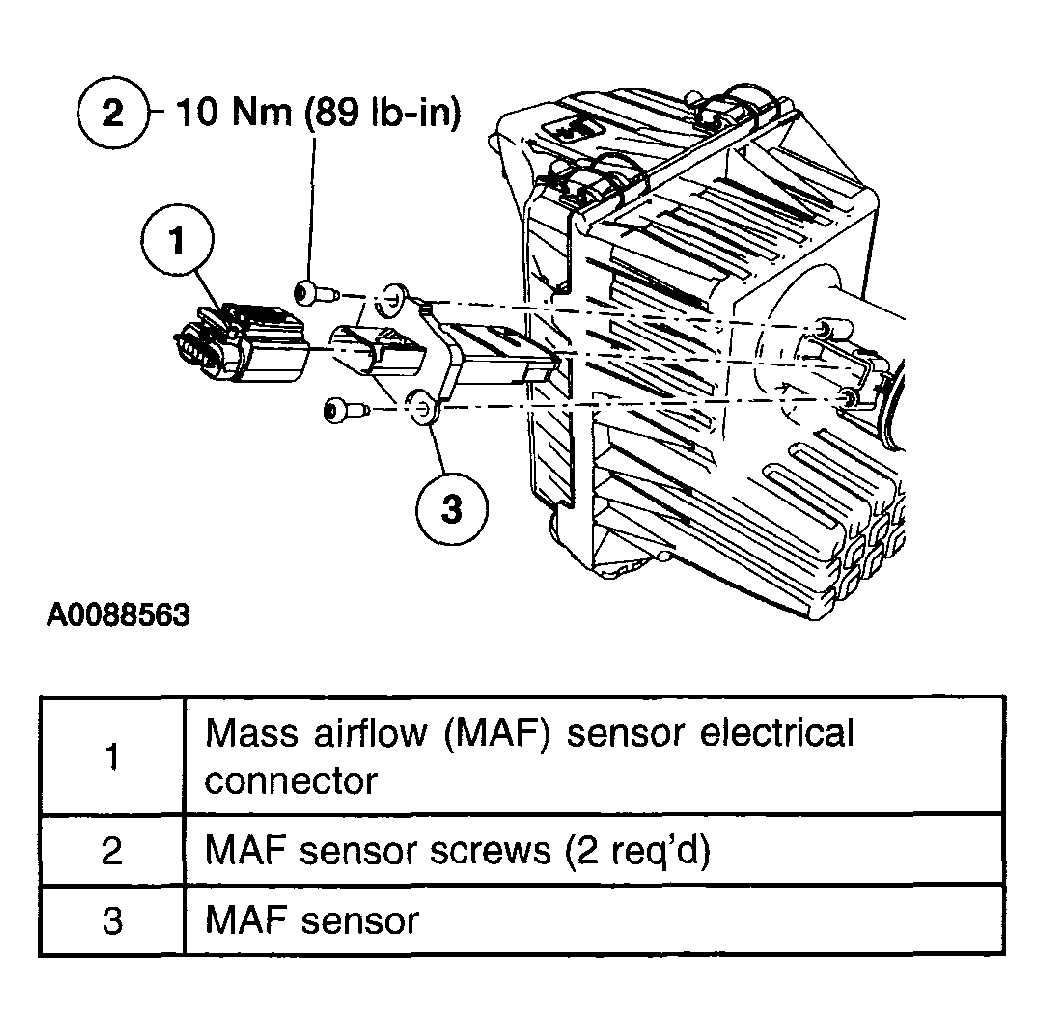

Fig 1: Removing/Installing Mass Air Flow (MAF) Sensor With Torque Specifications - 2.3L
G04320306Courtesy of MAZDA MOTORS CORP.
