Powertrain Control Module (Pcm): Notes

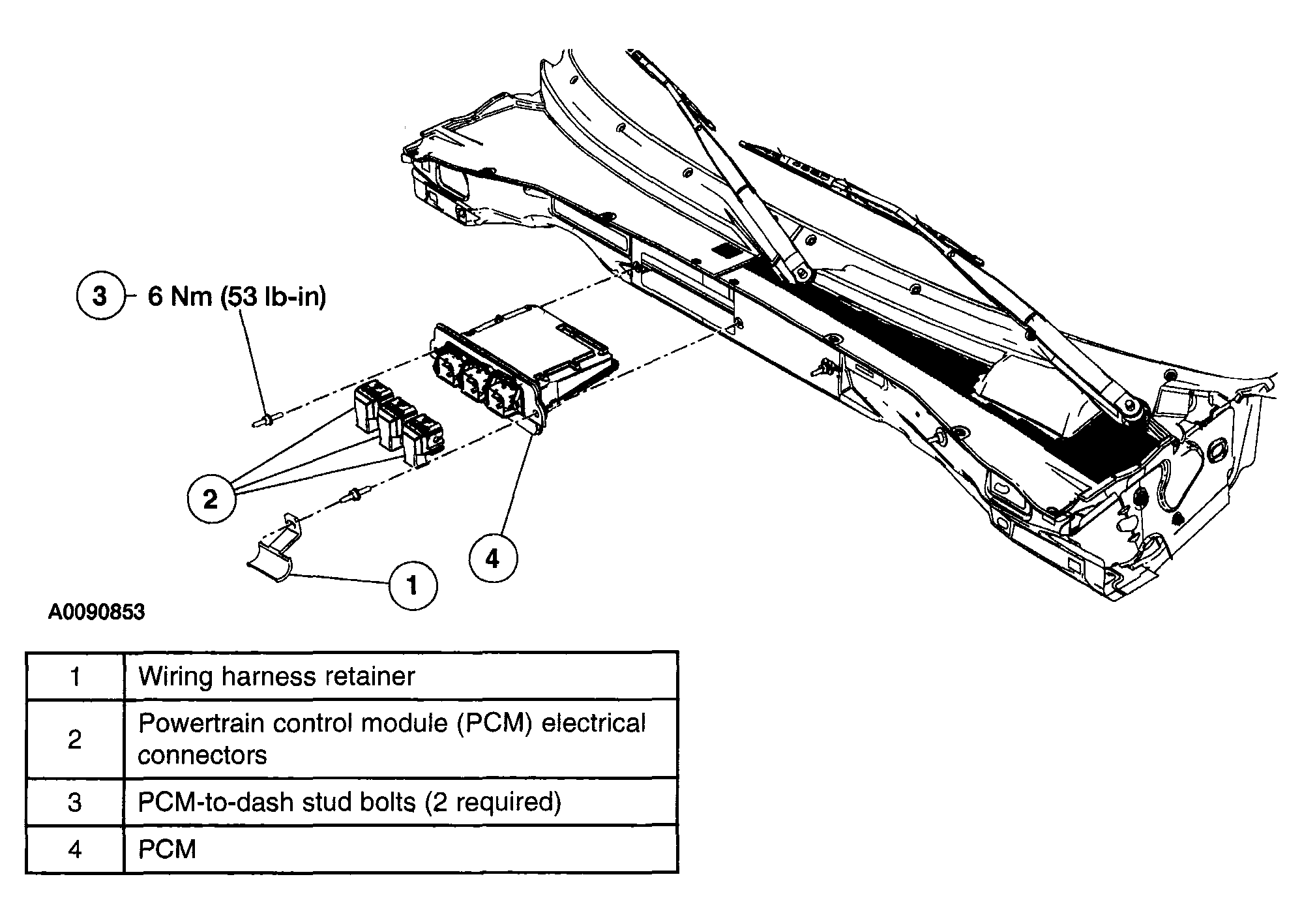

Fig 1: Removing/Installing Powertrain Control Module With Torque Specifications
G04320305Courtesy of MAZDA MOTORS CORP.
