Engine Ignition: Notes

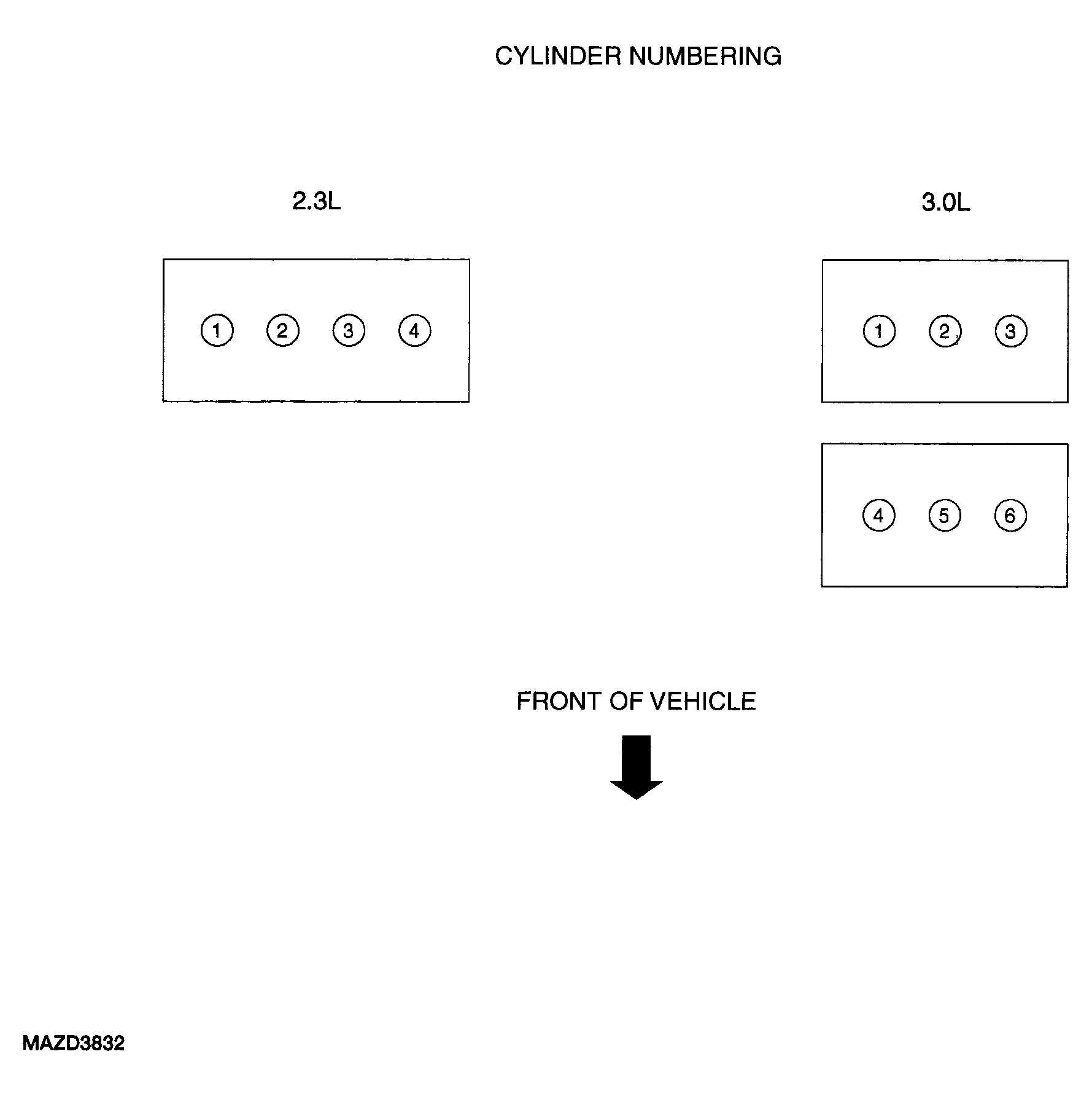

Fig 1: Identifying Cylinder Numbering And Front Of Vehicle

Courtesy of MAZDA MOTORS CORP.

The electronic ignition system is a coil-on-plug ignition system. The coil-on-plug ignition system consists of the following components:

• camshaft position (CMP) sensor
• crankshaft position (CKP) sensor
• ignition coils
• spark plugs
