Programming and Relearning

AUTO LIGHT ILLUMINATION LEVEL SETTING

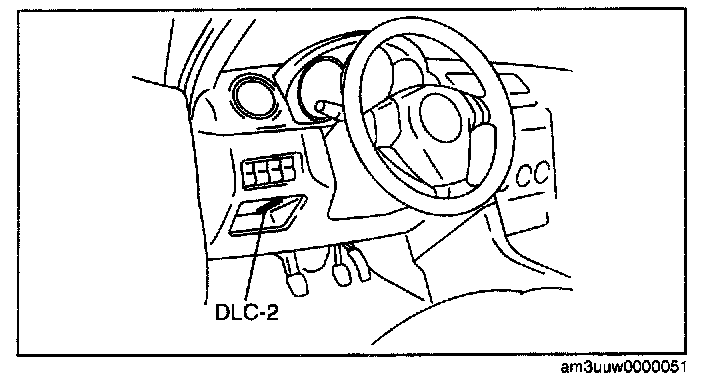

1. Connect the M-MDS to the DLC-2 (16-pin).
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

When using the IDS (laptop PC)
- Select "Module programming".

When using the PDS (Pocket PC)
- Select "Programming".
- Select "Module programming".

3. Select "Programmable Parameters".
4. Select "Exterior Lighting".
5. Select "Autolamp On Setting - (GEM)".
6. Select "Standard" other or "Low other" on the M- MDS to set the illumination level.
